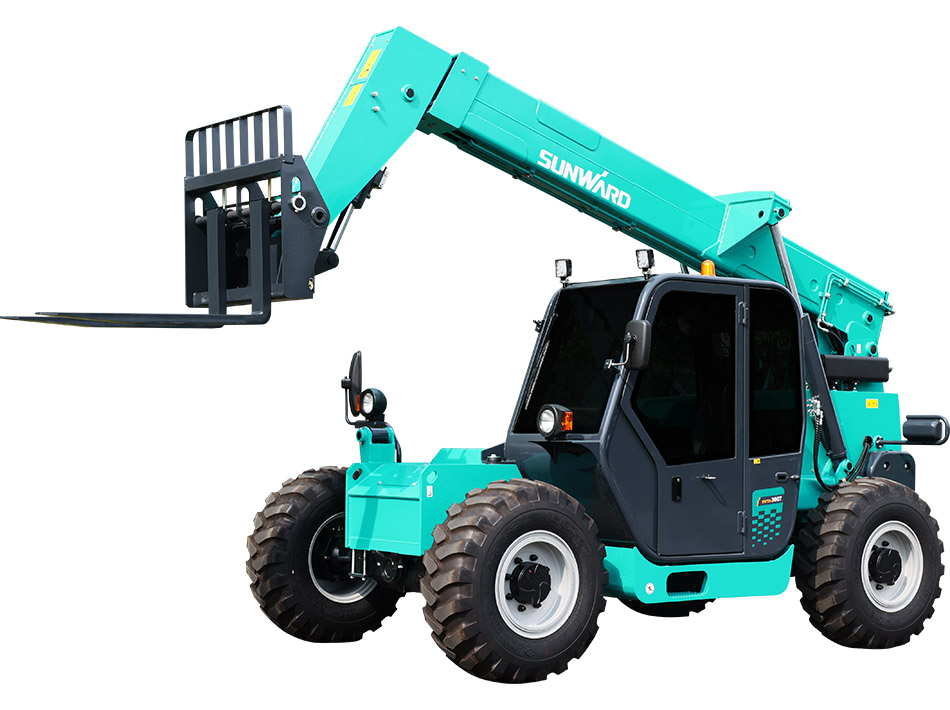

SWTH3007
Engine Power: 55kW
Machine Weight: 7800kg
Technical Parameters
-
SizeA Length to pallet fork
4790mm
B Width2320mm
C Height2400mm
D Wheel base2800mm
E Ground clearance365mm
F Wheel tread1930mm
G Cab width900mm
H Length to front wheel4284mm
-
Basic parametersOverall dimensions (LxWxH)
5990mm*2320mm*2400mm
Overall weight (no-load)7800kg
Rated bearing capacity3000kg
Maximum lifting height7m
Loading capacity at maximum extension length2500kg
Maximum extension length4.02m
Loading capacity at maximum extension length1000kg
Frame leveling angle10°
Ground clearance365mm
Turning radius (outside)3.97m
Traction force60kN
-
Actuation timeNo-load lifting time
8S
No-load descending time5S
No-load full retraction time7S
No-load full extension time8S
-
Power trainDrive mode
hydrodynamic driven
Gear stage (forward/backward)3/3
Maximum travel speed29km/h
Gradeability55%
-
EngineBrand
Yuchai
ModelYC4DK75-T303
Power55kW
Emission Standard/
Maximum torque315N.m
Oil injection methodElectronic injection
Cooling methodWater cooling
-
Hydualic PumpBrand
CASAPPA
ModelKP30.27A8K9LMD/MB45HSC/PLP20.16LGF/GD/20.6.3
Country of OriginITALY
Capacity27/16/6.3
-
Travel DeviceManufacturer
DANA
Model212
Country of OriginITALY
-
TransmissionManufacturer
DANA
Model1106FT12366
Country of OriginITALY
-
CabinROPS, FOPS
WITH
Rear View CameraWITH
MonitorWITH
Rear View Mirror, Qty1
RadioWITHOUT
AirconditionerWITH
-
Boom ArrangementTyres
2
Nos. of Boom Cylinders1
-
TyresFront
16/70-20
ManufacturerQIANJIN
Country of OriginCHINA
Rear16/70-20
ManufacturerQIANJIN
Country of OriginCHINE
Drive4*4
-
OutriggersFront (STD / Option)
WITHOUT
Rear (STD/Option)WITHOUT
-
Coupling DeviceManufacturer
NA
Standard/OptionalStandard
Suitable ForAll optional attachments
-
AttachmentsStandard
Fork
OptionsBucket, Hanging Bucket, Clamping Bucket, Lifting Hook
-
System capacityHydraulic oil
140L
Fuel oil140L
Engine oil12L
Cooling Liquid12L
Pallet fork1200mmx120mmx50mm
