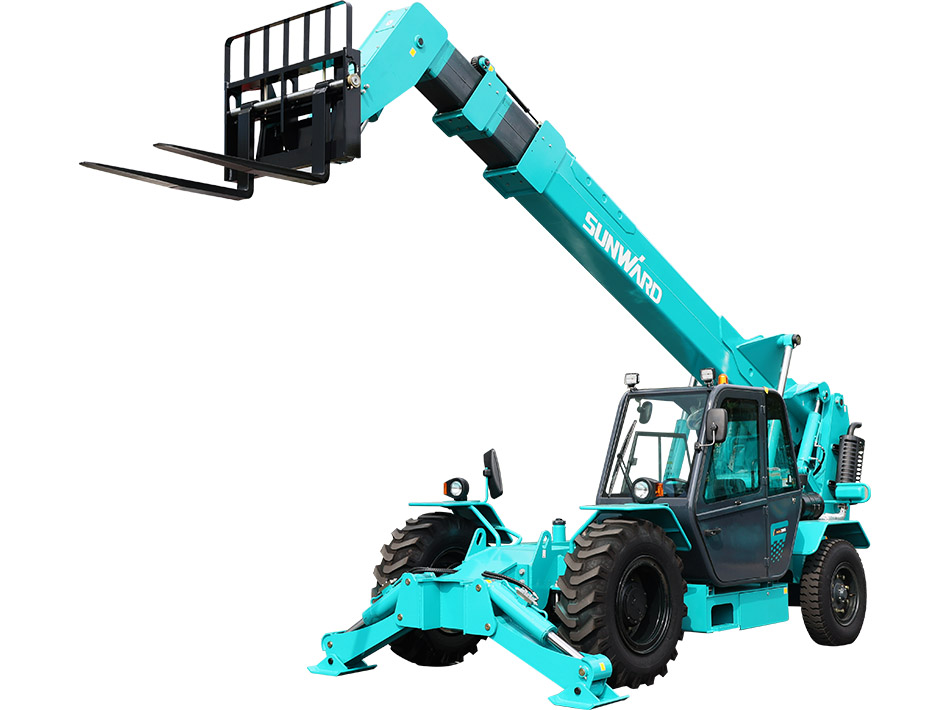

SWTH3915
Engine Power: 73.6kW
Machine Weight: 12800kg
Technical Parameters
-
SizeA Length to pallet fork
6350mm
B Width2320mm
C Height2450mm
D Wheel base3300mm
E Ground clearance300mm
F Wheel tread1875mm
G Cab width940mm
H Length to front wheel5420mm
-
Basic parametersOverall dimensions (LxWxH)
7570mm*2320mm*2450mm
Overall weight (no-load)12800kg
Rated bearing capacity4000kg
Maximum lifting height14.46m
Loading capacity at maximum extension length4000kg
Maximum extension length9.7m
Loading capacity at maximum extension length1000kg
Frame leveling angle/
Ground clearance300mm
Turning radius (outside)5.06m
Traction force40kN
-
Actuation timeNo-load lifting time
9S
No-load descending time10S
No-load full retraction time20S
No-load full extension time16S
-
Power trainDrive mode
hydrodynamic driven
Gear stage (forward/backward)2/2
Maximum travel speed36km/h
Gradeability30%
-
EngineBrand
Yuchai
ModelYCD4J23T8-100
Power73.6kW
Emission Standard/
Maximum torque380N.m
Oil injection methodElectronic injection
Cooling methodWater cooling
-
Hydualic PumpBrand
HEFEI CHANGYUAN HYDRAULIC(HCHC)
ModelCBK-G436/CBK-432
Country of OriginCHINA
Capacity36/32
-
Travel DeviceManufacturer
XUZHOU XUCHA
ModelCZQ327
Country of OriginCHINA
-
TransmissionManufacturer
Zhong Nan
ModelYQXD100K2.970
Country of OriginCHINA
-
CabinROPS, FOPS
WITH
Rear View CameraWITH
MonitorWITH
Rear View Mirror, QtyWITHOUT
RadioWITHOUT
AirconditionerEQUIPPED
-
Boom ArrangementTyres
3
Nos. of Boom Cylinders1
-
TyresFront
15.5X25-16
ManufacturerChaoyang
Country of OriginCHINA
Rear9.00-20-16PR
ManufacturerChaoyang
Country of OriginCHINE
Drive2*4
-
OutriggersFront (STD / Option)
EQUIPPED
Rear (STD/Option)WITHOUT
-
Coupling DeviceManufacturer
NA
Standard/OptionalStandard
Suitable ForAll optional attachments
-
AttachmentsStandard
Fork
OptionsBucket, Hanging Bucket, Clamping Bucket, Lifting Hook
-
System capacityHydraulic oil
180L
Fuel oil140L
Engine oil12L
Cooling Liquid15L
Pallet fork1220mmx125mmx50mm
