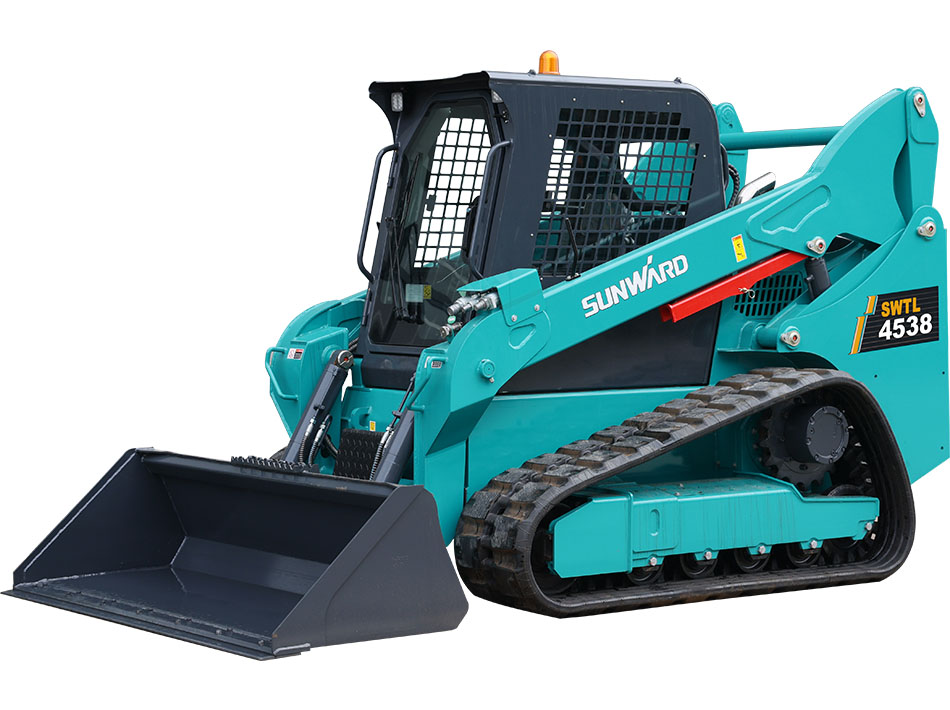

SWTL4538

Technical Parameters

• Parameter Modlel
  Boundary dimension(L×W×H)

  3735X2015X2071mm/147.6X79.3X81.5in

  Operating weight

  4680kg/10317lb

  Rated operating capacity

  1200kg/2648lb

  Tipping load

  3430kg/7568lb

  Breakout force curl

  3450kg/7613lb

  Breakout force lift

  2600kg/5737lb

  Travel speed

  12/18(Double speed）kph;7.5/11.2mph

  Bucket capacity

  0.6m³/21.2ft³

• Machine Dimensions
  Maximum overall height

  4110mm/161.8in

  Height to hinge pin

  3217mm/126.7in

  Height to top of cab

  2071mm/81.5in

  Height to bottom of level bucket

  3048mm/120in

  Length without standard bucket

  2969mm/116.9in

  Length with bucket

  3735mm/147in

  Maximum dump angle

  41 °

  Dump height

  2497mm/98.3in

  Dump reach

  948mm/37.3in

  Rollback angle (bucket on ground)

  30 °

  Rollback angle at maximum height

  89 °

  Wheelbase（Track Gauge）

  1600mm/63in

  Ground

  228mm/9in

  Departure angle

  34 °

  Turning radius from center (Coupler)

  1424mm/56.1in

  Turning radius from center (Bucket)

  2322mm/91.4in

  Turning radius from center (Machine rear)

  1701mm/67in

  Bumper overhang behind rear axle

  855mm/33.7in

  Width over tire(Crawler Base)

  1500mm/59.1in

  Bucket width

  2015mm/79.3in

• Engine
  Moadel

  V3307-T

  Type

  4-cylinder,water-cooled,diesel engine

  Emission level

  GB Ⅲ

  Power

  54.6/2600kW/rpm;73.2hp

  Peak torque

  265/1600N.m/rpm;195.5lb·ft

• Transmission system
  Type

  Hydrostatic closed circuit

  Pump

  Variable displacement piston pump

  Motor

  2XRadial plunger quantitative single speed motor

• Hydraulic system
  Type

  Throttling system

  Bump

  Gear pump

  Hydraulic flow_Standard/

  89/130lpm

  Hydraulic flow_High flow

  20/29gpm

  Pressure

  210bar/3045psi

  Control valve

  Three joint multi-way valve

  Control mode

  ISO model of pilot control

• Electric system
  Starter

  12/3.0 V/kW

  Alternator rating

  12/80 V/A

  Battery

  120 Ah

• Service refill capalities
  Hydraulic tank

  34L/9gal

  Fuel tank

  95L/25.1gal

  Chain box

  –

  Engine oil

  10.7L/2.8gal

  Cooling system

  9L/2.4gal

• Traveling system
  Tire

  –

  Track

  450
