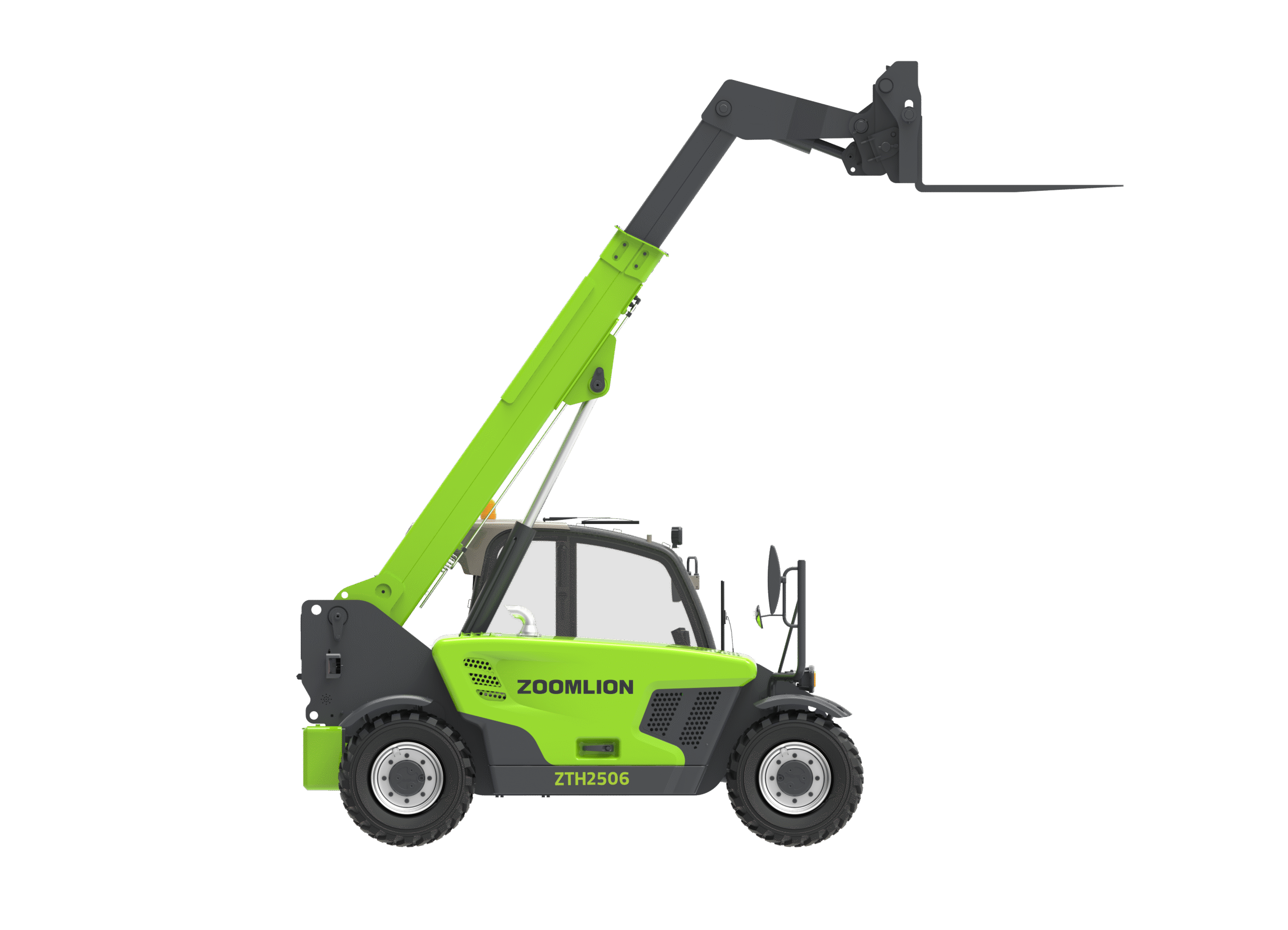

ZTH2506 TELEHANDLER
-
Strong power chassis with excellent driving performance and off-road capacity
-
4×4 drive system,front and rear driving axle with antislip differential gear for great traction force and escape ability
-
Hydraulic cylinder driven extension system for smooth movement,strong capacity and large work envelope
-
10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience
-
Standard floating fork and optional platform, bucket, crane boom and other attachments meet the diverseneeds of customers
| A Overall length | 4.01m |
| B Overall width | 1.83m |
| C Overall height | 1.95m |
| F Wheelbase | 2.35m |
| G Min ground clearance | 0.3m |
| Rated capacity | 2500kg |
| Max lift height | 6.1m |
| Lift capacity at max height | 2000kg |
| Max forward reach | 3.5m |
| Lift capacity at max reach | 800kg |
| Weight | 4970kg |
| Max traction force | 42kN |
| Frame leveling angle | / |
| Turning radius - outside | 3.38m |
| Engine | KUBOTAV3307-CR-TE5B/ KUBOTA V3307-DI-TE3B |
| Rated power | 55.4kw |
| Max torque | 265Nm |
| Cylinder | 4 |
| Displacement | 3310ml |
| Transmission | Hydrostatic |
| Max drive speed | 27km/h |
| Steering | Front wheels/4WS/Crab |
| Type | 12.00-16.5-12PR |
| Implement pump | Gear pump |
| Hydraulic flow-pressure | 88-270L/min-bar |
| Hydraulic tank capacity | 100L |
| Fuel tank capacity | 65L |
| Fork size | 1220mm× 100mm×45mm |
| Fork rotary | 132° |
| Boom up/down | 7.9/5.2s |
| Boom extend/extract | 5.7/4.5s |
| Fork lift | 3.5s |
| Fork retract | 3.5s |
