TELESCOPIC CRAWLER CRANE
9 8 月, 2025
CRAWLER CRANE
9 8 月, 2025

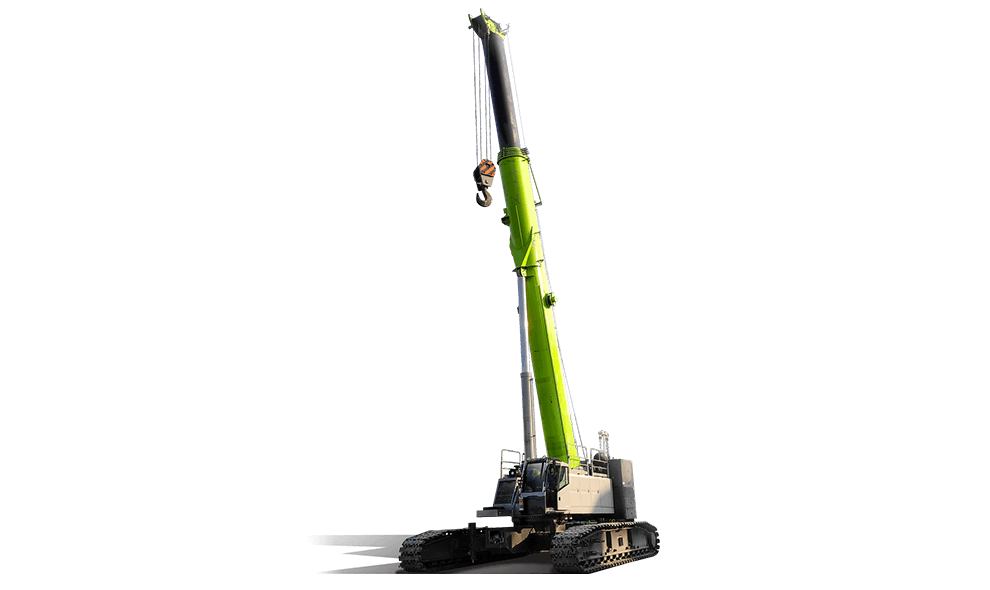

TELESCOPIC CRAWLER CRANE
7.88m×0.9m crawler, 6 sections ellipse-shaped 65m boom, 2 sections jibs for optional (10.4m, 17.5m), WEICHAI WP10 engine (Optional: US Cummins), dual hoisting winches, dual slewing winches, 125t total weight (85t + 40t counterweights) , tiltable operator’s cab, ZOOMLION LMI, eletrical control, 110T, 60T and 9T hooks.
-
Super strong boom, max. lifting torque 5220kN.m, max. lifting load 15.5T of fully extended boom
-
WEICHAI engine, optional US CUMMINS, robust power guaranteed
-
Standard vertical outriggers enables self- assemble & disassemble
-
Meet 3m width, can also transport with crawler in short distance within 3.6m width
-
With tip boom lifting option, covering more working radius
| Boom length | 65m |
| Fixed jib length | 17.5m |
| Max Lifting Capacity | 150t |
