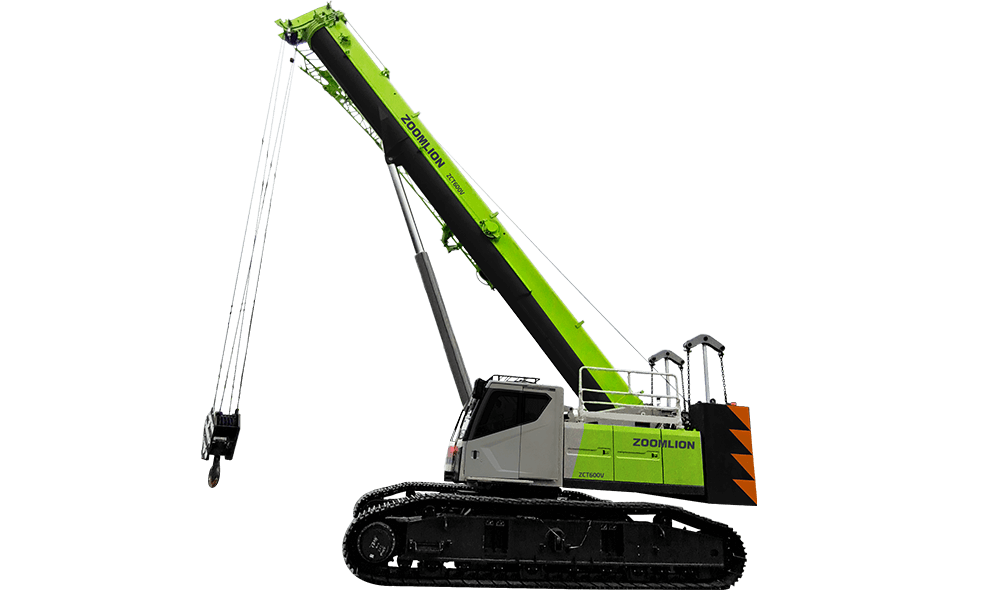

TELESCOPIC CRAWLER CRANE
6.235m×0.76m crawler (For optional:6.342m×0.762m flat crawler) , 5 sections U-shaped 46m boom, 2 sections jibs (7.5m, 12.8m), WEICHAI WP6 engine (Optional: US Cummins), dual hoisting winches, single slewing winch, 62.5t total weight (42.5t + 20t counterweights) /61t total weight when equipped flat crawler(41t + 20t counterweights), tiltable operator’s cab, ZOOMLION LMI, 60T and 5T hooks,travelling reducer 110KN.m (For optional: 80KN.m) .
-
Max.lifting torque 2205kN.m, max. lifting load 11T of fully extended boom
-
Standard vertical outriggers, two types of crawler track shoe are optional
-
3m width transport, 20T counterweights can self-assemble & disassemble
| Boom length | 46m |
| Fixed jib length | 12.8m |
| Max Lifting Capacity | 60t |
