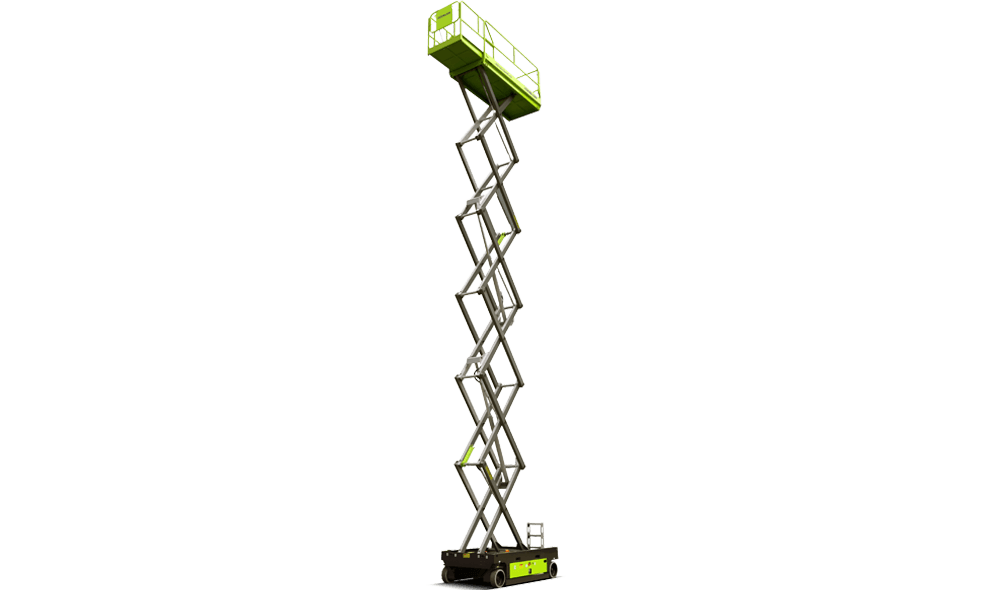

ZS1414AC-Li AC/AC-LI SCISSOR SERIES
Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites
-
High Performance
-
AC system offers higher working efficiency;
-
IP67 reached that AC motor offers longer lifespan;
-
Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20℃ cold working conditions.
-
Cost Effectiveness
-
Knuckles lubrication-free and maintenance-free;
-
AC motor full lifecycle maintenance-free;
-
Swing-out tray easy to service.
-
Intelligent Connectivity
-
Battery Management System (BMS) + Machine control system provide dual protection
| Work Height | 15.7m/10.5m |
| A - Platform Height-Elevated | 13.7m/8.5m |
| B - Platform Height-Stowed | 1.54m |
| C - Platform Length | 2.67m |
| D - Platform Width | 1.12m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.68m |
| Overall Height (Rails Down) | 2.15m |
| F - Overall Length | 2.87m |
| G - Overall Width | 1.4m |
| H - Wheelbase | 2.22m |
| I - Ground Clearance (Stowed) | 0.11m |
| J - Ground Clearance (Raised) | 0.02m |
| Platform Capacity | 350kg |
| Capacity on Deck Extension | 113kg |
| Max. Number of Workers | 2/1 |
| Drive Speed (Stowed) | 4km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Inside) | 0.1m |
| Turning Radius (Outside) | 2.6m |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | 2×0.75KW |
| Up/Down Time | 88/60s |
| Gradeability | 25% |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Front Wheels |
| Tire | ∅381mmX127mm |
| Battery | 230Ah Li-ion |
| Charger | 24V/30A |
| Charger (Option) | 24V/60A |
| Gross | 3310kg |
