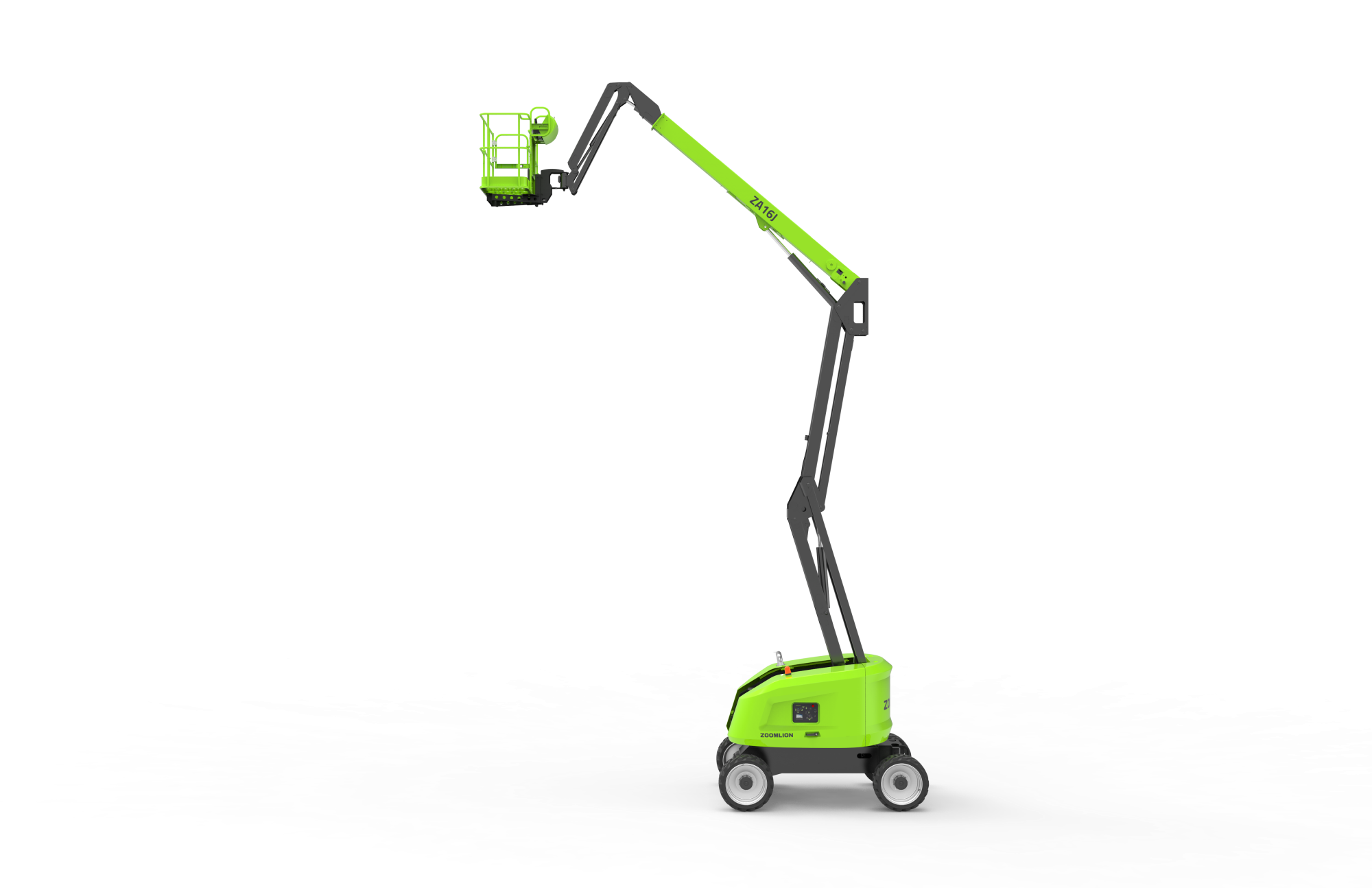

ZA16J DIESEL ARTICULATING BOOM LIFT
-
Heavier dual platform capacity of 250kg/360kg, able to carry more materials and tools
-
8m up and over height and outreach of 9.97m for strong obstacle-cross ability
-
360° continuous turntable rotation for flexible operation
-
Symmetric boom layout with good boom stiffness for stable movement
-
Multi-way valve control, pressure compensation function, smooth and accurate control
| Work Height | 18m |
| Platform Height | 16m |
| Horizontal Outreach | 9.97m |
| Up and Over Height | 8m |
| A - Stowed Length | 7.95m |
| B - Stowed Width | 2.27m |
| C - Stowed Height | 2.23m |
| D - Platform Length | 1.83m |
| E - Platform Width | 0.76m |
| F - Wheelbase | 2.36m |
| G - Ground Clearance | 0.42m |
| Platform Capacity | 250/360kg |
| Drive Speed | 6km/h |
| Gradeability | 45%(24°) |
| Axles Oscillation | 0.1m |
| Turning Radius (Inside) | 2.06m |
| Turning Radius (Outside) | 4.78m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0m |
| Max. Working Slope | 5° |
| Max. Wind Speed | 12.5m/s |
| Diesel Engine | Kubota V2403(EU V) 36.8kw/2700rpm Kubota V2403(CN III) 36kw/2600rpm |
| Fuel Tank Capacity | 150L |
| Auxiliary Power | 12V |
| Control Voltage | 12V |
| Hydraulic System Capacity | 110L |
| Hydraulic Tank Capacity | 80L |
| Type | Foam-filled tire |
| Gross | 8550kg |
