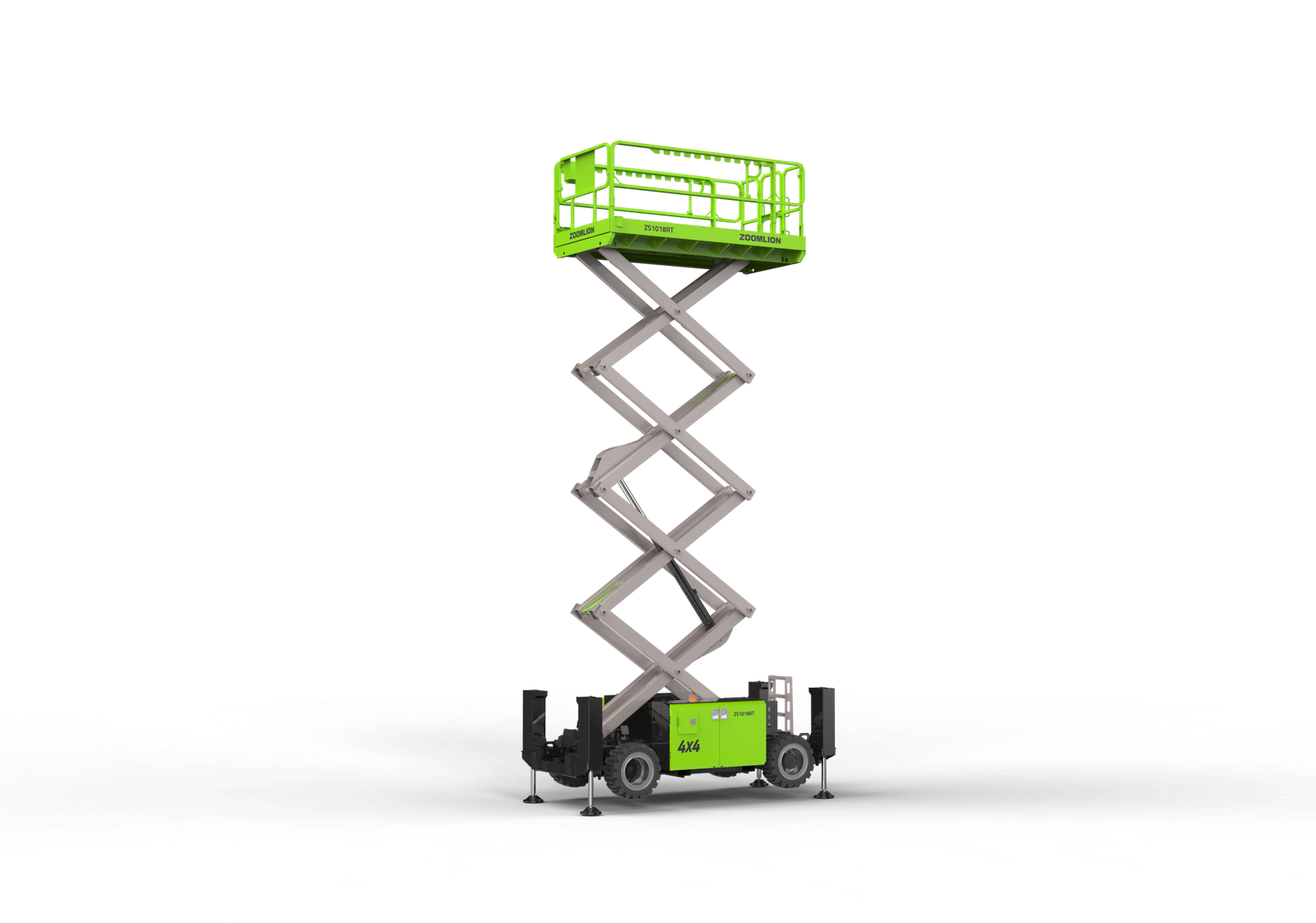

ZS1018RT DIESEL ROUGH TERRAIN SCISSOR LIFT
-
Drivable at full height, high working efficiency
-
4WD motor drive and oscillating axle,great off-road performance
-
Click-to-level function
-
40% gradeability, good adaptability 10
-
Large ground clearance, easy to cross obstacles
-
Knuckles lubrication-free and maintenance-free
-
Swing-out tray,easy to service
-
Reliable hydraulic system,easy to maiantain
-
Intelligent Connectivity
-
Remote monitoring and rental system, easy to acquire machine info, effective to run fleet
| Work Height | 12m |
| A Platform Height-Elevated | 10m |
| B Platform Height-Stowed | 1.5m |
| C Platform Dimension (Length) | 2.9m |
| D Platform Dimension (Width) | 1.52m |
| Platform Extension | 1.5m |
| Overall Height (Rails Up) | 2.6m |
| E Overall Height (Rails Down) | 1.9m |
| F Overall Length | 3.71/3.14m |
| G Overall Width | 1.77m |
| H Wheelbase | 2.29m |
| I Ground Clearance | 0.24m |
| Platform Capacity | 500kg |
| Capacity on Deck Extension | 113kg |
| Drive Height | full height |
| Max. Number of Workers | 7 |
| Drive Speed (Stowed) | 5km/h |
| Drive Speed (Raised) | 0.4km/h |
| Turning Radius (Inside) | 2m |
| Turining Radius (Outside) | 4.2m |
| Up/Down Time | 45/45s |
| Gradeability | 40%(22°) |
| Max. Working Slope (Lateral/Vertical) | 2°/3° |
| Drive | 4WD |
| Tire | Solid tire |
| Engine | D1105-E4B-ZML-5 |
| Engine Power | / |
| Fuel Tank Capacity | / |
| Diesel Tank | / |
| Gross | 4600/4000kg |
