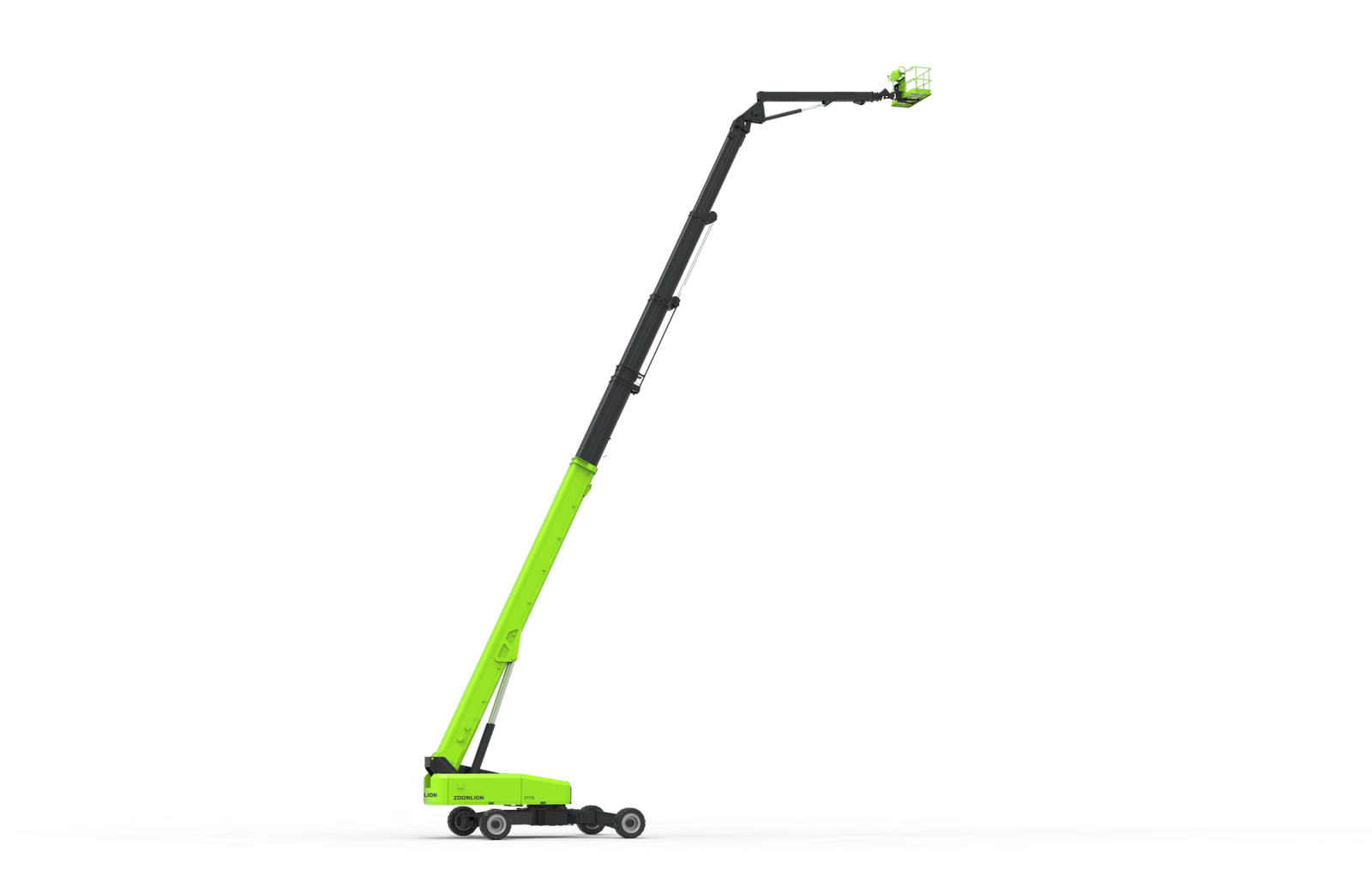

ZT72J DIESEL TELESCOPIC BOOM LIFT
-
Highest telescopic boom lift that work height up to 72.3m and horizontal outreach up to 32m
-
Innovative polygonal boom with light weight and small side deformation for stable operation
-
X outrigger offers larger working envelope,stronger off-road ability, and better stability
-
13.1m ultra-long telescopic jib for large work envelope and convenient application
-
Ultra long boom with multiple sensors for safe and efficent application
-
Double lifting cylinder layout provides more smooth lifting, better boom rigidity and less platform shakes
| Work Height | 72.3m |
| Platform Height | 70.3m |
| Horizontal Outreach | 32.6m |
| A - Stowed Length | 16.5m |
| B - Stowed Width | 2.5m |
| C - Stowed Height | 3.16m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 6.2/5.4m |
| Tread | 2.5/5.6m |
| G - Ground Clearance | 0.40m |
| Platform Capacity (Unrestricted/Restricted) | 230/300/454kg |
| Drive Speed (Stowed) | 4.5km/h |
| Gradeability | 40% (22°) |
| Turning Radius (Inside) | 7.42/2.69m |
| Turning Radius (Outside) | 9.8/7.39m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 2.1m |
| Jib (Range of Articulation) | 125°(-55°~70°) |
| Max. Wind Speed | 12.5m/s |
| Engine | Cummins F3.8 (Eu Stage V) Cummins F4.5 (China Stage IV) Cummins QSF3.8 (China Stage III) |
| Fuel Tank Capacity | 200L |
| Control Voltage | 12V DC |
| Hydraulic Tank Capacity | 480L |
| Drive Mode | 4WD |
| Steering Mode | 4WS/Front wheel/Crab |
| Type | Foam-filled Tires |
| Gross | 38300kg |
