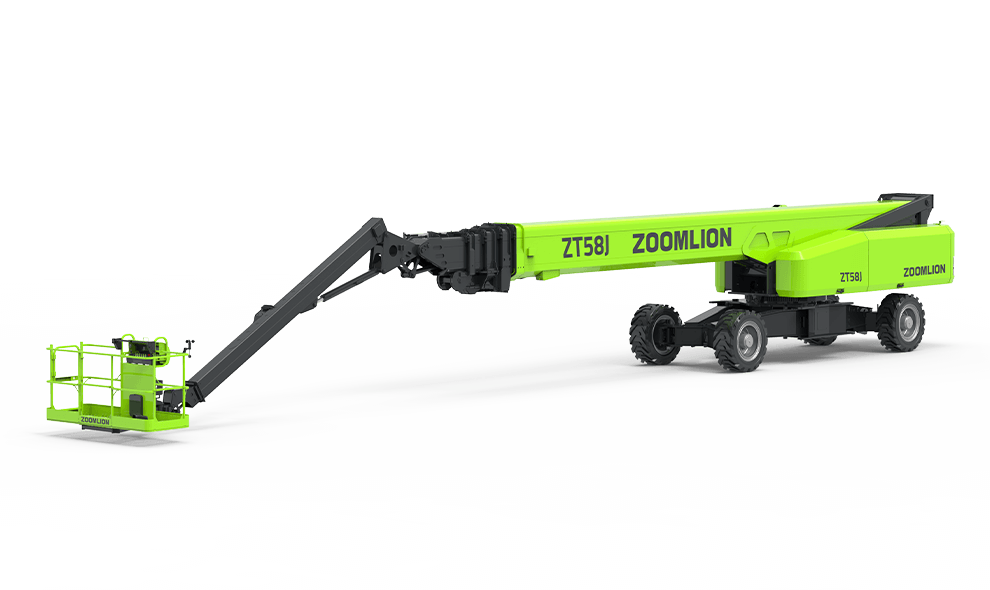

ZT58J DIESEL TELESCOPIC BOOM LIFT
ZT58J-V is one of our representative products of Zoomlion’s ultra-high telescopic boom lift. Provide a vertical reach of 58.8m (192ft 11in) and horizontal reach of 25.5m(83ft 8in) , offer a dual lift capacity of 300/454 kg (660/1000lb) and 17 safety protection measures, and equip with PLC control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault detection and alarm display function offer convenient maintenance. The polygonal boom system effectively reduce the boom weight and deflection, and offer better stability. Equipped with a 6.25m(20ft 6in) jib, it has a wider operating range and is more convenient to use.
-
Work height up to 58.8m and horizontal outreach up to 25.5m
| Work Height | 58.8m |
| Platform Height | 56.8m |
| Horizontal Outreach | 25.5m |
| A - Stowed Length | 14.4m |
| B - Stowed Width | 2.5m |
| C - Stowed Height | 3.06m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 5.357/4.69m |
| Tread | 2.5/5.15m |
| G - Ground Clearance | 0.40m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 4.5km/h |
| Gradeability | 45%(24°） |
| Turning Radius (Inside) | 6.79/2.57m |
| Turning Radius (Outside) | 8.43/6.39m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 2.16m |
| Jib (Range of Articulation) | 125°（﹣55°~70°） |
| Max. Wind Speed | 12.5m/s |
| Engine | Cummins QSF3.8 |
| Fuel Tank Capacity | 200L |
| Control Voltage | 12V DC&& |
| Hydraulic Tank Capacity | 400L |
| Drive Mode | 4WD |
| Steering Mode | Four wheels/Front wheel/Crab |
| Type | 445/50 D710 Foam-filled Tires |
| Gross | 29600kg |
