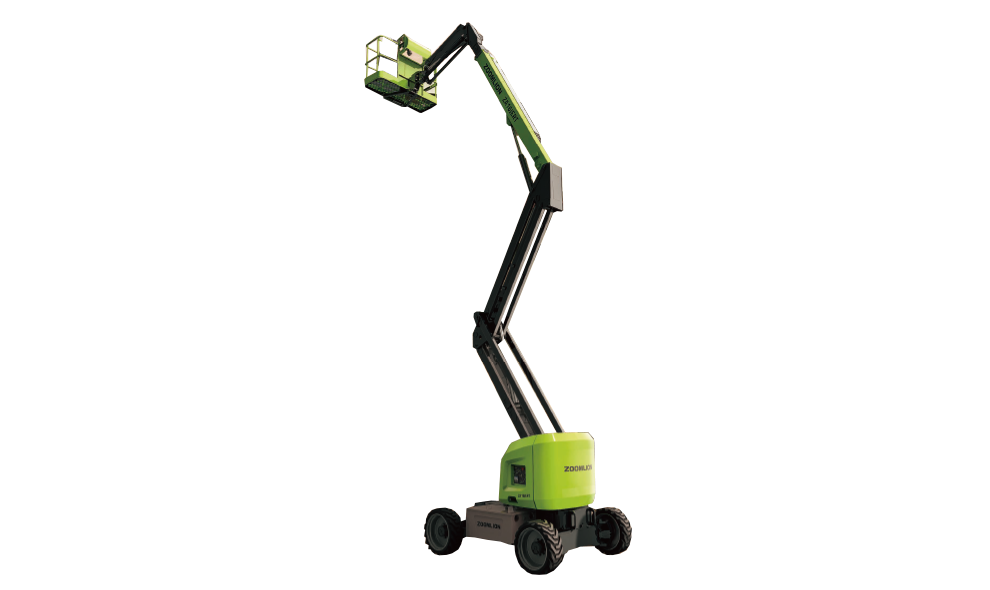

ZA16JERT-Li ELECTRIC ARTICULATING BOOM LIFT
16M all-terrain lithium battery boom lift
Center layout, great structural rigidity, and small boom deflection
Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free
First electrical off-road articulating boom lift of 16m height with strong power suits for complicated working conditions
-
Center layout, great structural rigidity, and small boom deflection
-
Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free
-
First electrical off-road articulating boom lift of 16m height with strong power suits for complicated working conditions
| Work Height | 17.8m |
| Platform Height | 15.8m |
| Horizontal Outreach | 9.72m |
| Up and Over Height | 8m |
| A - Stowed Length | 7.7m |
| B - Stowed Width | 2.3m |
| C - Stowed Height | 2.23m |
| D - Platform Length | 1.83m |
| E - Platform Width | 0.76m |
| F - Wheelbase | 2.36m |
| G - Ground Clearance | 0.36m |
| Platform Capacity | 250kg |
| Drive Speed | 6.1km/h |
| Gradeability | 45%(24°) |
| Axles Oscillation | 0.20m |
| Turning Radius (Inside) | 2.06m |
| Turning Radius (Outside) | 4.78m |
| Turntable Swing | 360° non-continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0.2m |
| Max. Wind Speed | 12.5m/s |
| Battery | 24×2V/320Ah |
| Charger | 48V/35A&48V/35A |
| Drive Motor | AC 32V |
| Lift Motor | AC 32V |
| Auxiliary Power | 12V DC Electrical pump |
| Hydraulic Tank Capacity | 30L |
| Type | 33×12 Foam-filled tire |
| Gross | 7300 kg |
