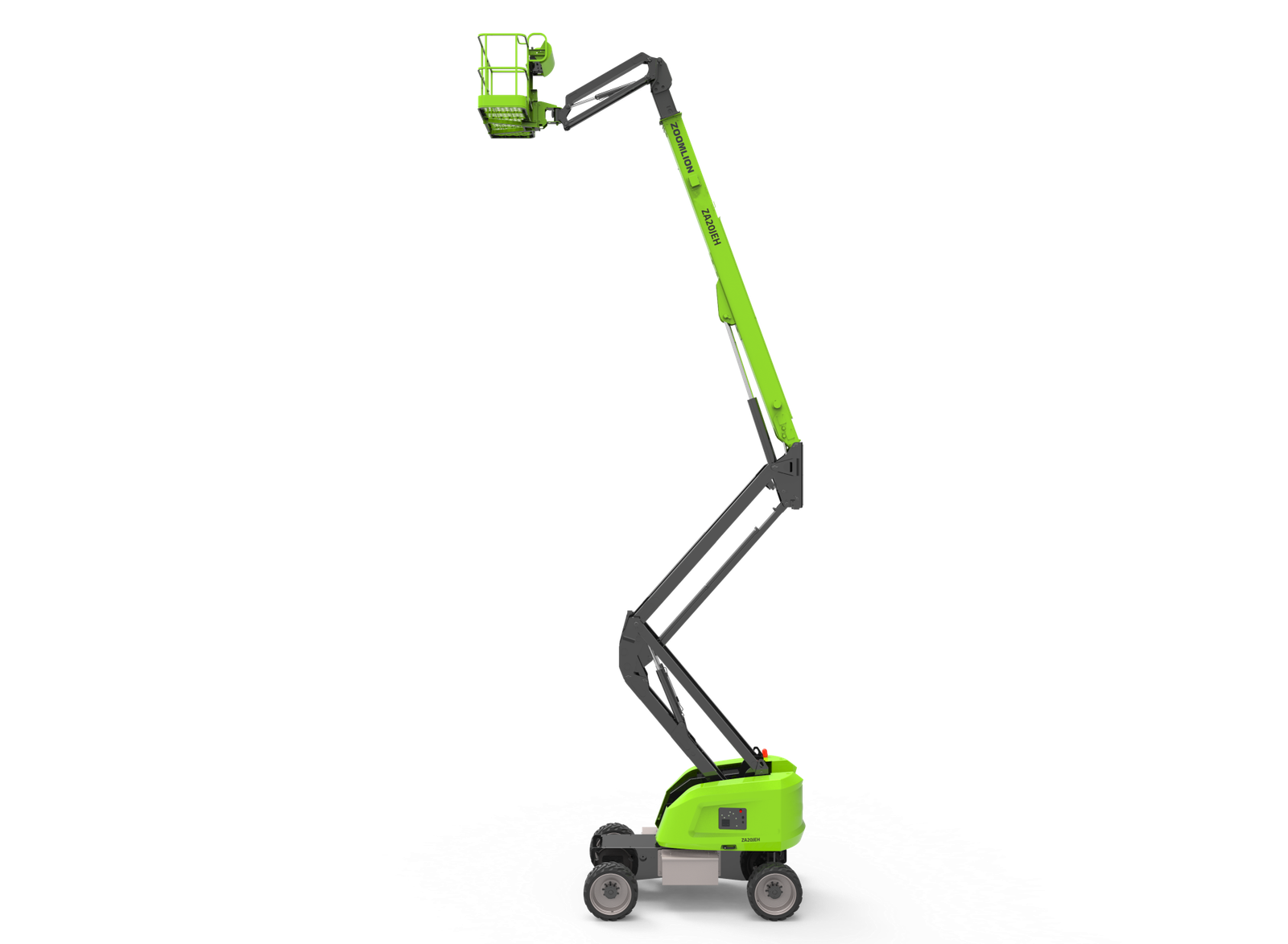

ZA20JEH ELECTRIC ARTICULATING BOOM LIFT
-
6kw large power range extender provides power in low electric quantity for long working hours
-
Fast lift system directly lowers the boom from the highest position to the ground,no need to fold the boom to improve work efficiency
-
Independent auxiliary power system for more secure application
-
Large reduction ratio reducer provides stronger gradeability
Safe and reliable lithium battery power system equipped with BMS low-temperature heating and low-temperature charging current control functions improves battery life by 30% and adapts to -20°C cold environment.
| Work Height | 21.38m |
| Platform Height | 19.38m |
| Horizontal Outreach | 12.1m |
| Up and Over Height | 8.25m |
| A - Stowed Length | 8.8m |
| B - Stowed Width | 2.46m |
| C - Stowed Height | 2.52m |
| D - Platform Length | Standard:2.44 m Option: 1.83m |
| E - Platform Width | Standard:0.91m Option:0.76m |
| F - Wheelbase | 2.52m |
| G - Ground Clearance | 0.4m |
| Platform Capacity | 250kg/360kg |
| Drive Speed | 5.2km/h |
| Gradeability | 45% |
| Axles Oscillation | 0.2m |
| Turning Radius (Inside) | 2.78m |
| Turning Radius (Outside) | 5.49m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0.64m |
| Max. Working Slope | 3°/5° |
| Max. Wind Speed | 12.5m/s |
| Battery | 48V/315Ah Li-ion battery (Li) |
| Charger | 48V/60A |
| Drive Motor | AC 32V |
| Lift Motor | AV 32V |
| Auxiliary Power | 12V DC |
| Hydraulic Tank Capacity | 75L |
| Type | Foam-filled tire |
| Gross | 9750kg |
