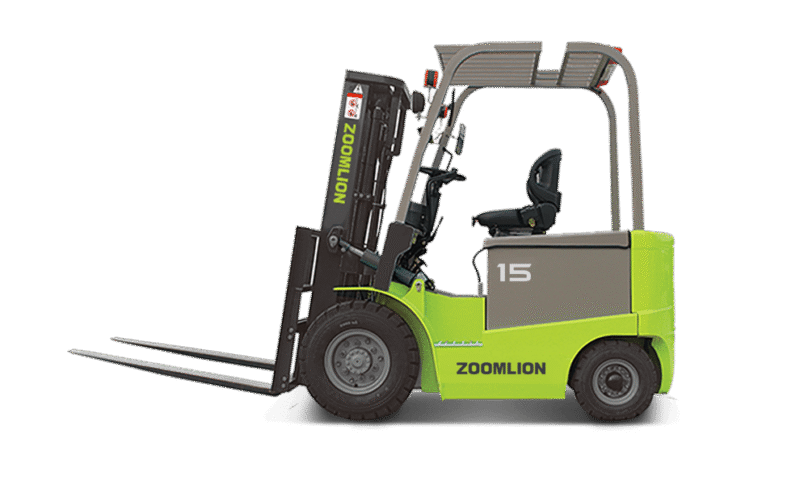

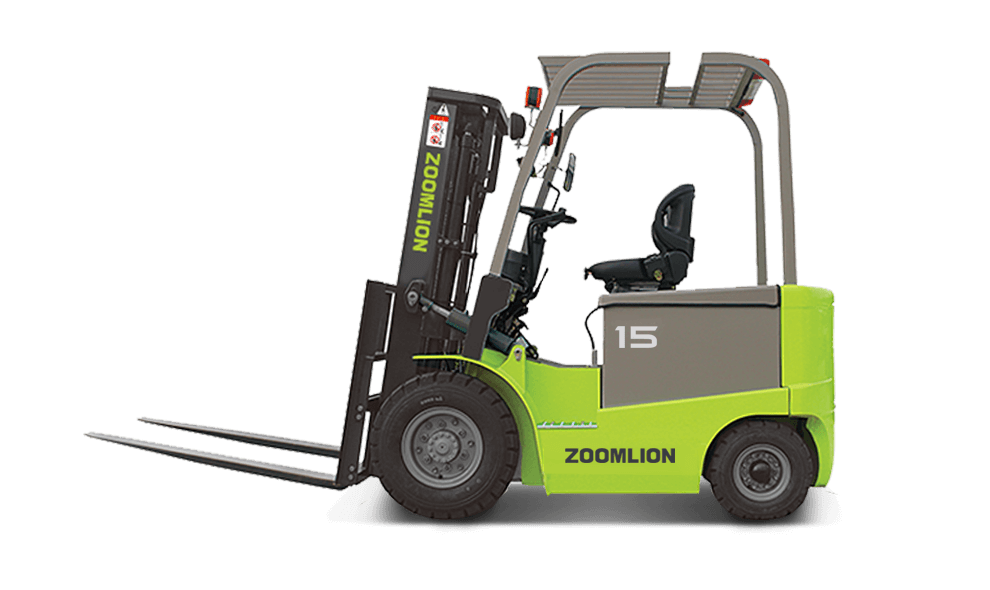

FB15Z ELECTRIC FORKLIFT
Alternate walking motor and lifting motor with automatic protection and free maintenance.
Curtis LED screen with settings of walking and lifting performance; it can monitor the running of motor, thus get working hours and fault code.
-
Maintenance free AC motor and Curtis controller are used to ensure smooth operation.
-
Optional lithium iron phosphate battery, maintenance free, zero pollution, fully charged within 2 hours, warranty period of 5 years/10,000H.
-
The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
| Rated capacity | 1500 kg |
| Load centre | 500 mm |
| Lifting height | 3000 mm |
| Free lifting height | 135 mm |
| Tilting angle | 6°/12° |
| Turning radius | 1850 mm |
| Front overhang | 400 mm |
| Tread | 426 mm |
| Wheelbase | 1250 mm |
| Fork spread(Min./Max.) | 920 mm |
| Working aisle width with pallet(Ast) | 3570 mm |
| Service weight | - |
| Operating pressure for attachment | 111.9 kg/cm² |
| Travel (Laden) | 12 km/h |
| Travel(Unladen) | 13 km/h |
| Lifting(Laden) | 0.28 m/s |
| Lifting(Unladen) | 0.43 m/s |
| Lowering (Laden) | 0.45 m/s |
| Lowering(Unladen) | 0.4 m/s |
| Laden | 0.15 |
| Unladen | 0.15 |
| Driven motor | 8 kW |
| Pump motor | 10 kW |
| Battery | 48 V/450 Ah |
| Controller | AC |
| Rear Wheel | 5.00-8-10PR |
| Front Wheel | 6.50-10-10PR |
| Overall Dimension(L×H×W) | 2905 mm×1990 mm×1090 mm |
| Weight | 2990 kg |
相关产品
-

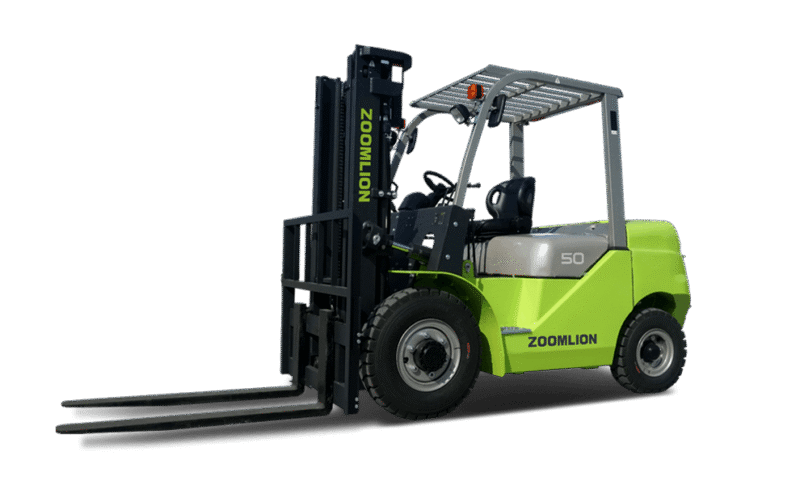

FD50mini INTERNAL COMBUSTION FORKLIFT
Reinforced mast with wide view design improves efficiency and safety;
Engine is with large torque and capacity, which is powerful and can meet different operation demands;
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.
Min. Turning Radius : 2240-2445mmMax. Lifting Speed(loaded/empty) : 470/520mm/sMax. Lifting Height : 7000mm -
ZTH2506 TELEHANDLER
-
Strong power chassis with excellent driving performance and off-road capacity
-
4×4 drive system,front and rear driving axle with antislip differential gear for great traction force and escape ability
-
Hydraulic cylinder driven extension system for smooth movement,strong capacity and large work envelope
Max lift height : 6.1mRated Capacity : 2500kgMax forward reach : 3.5m -
-

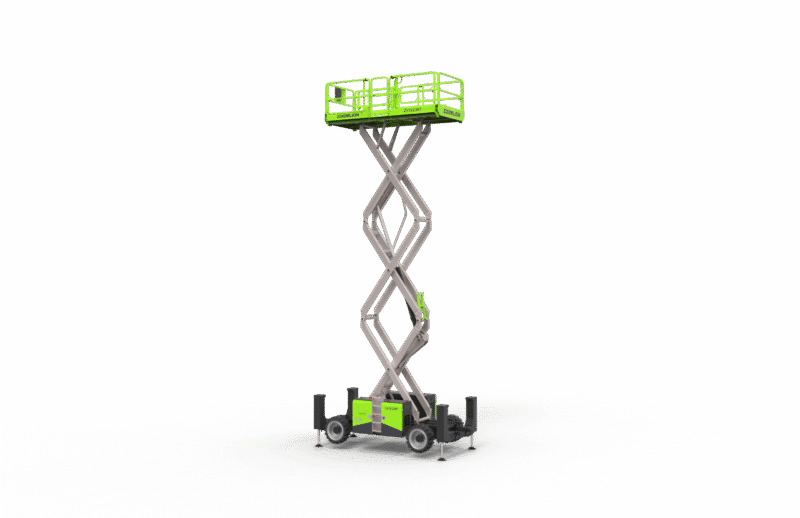

ZS1023RT DIESEL ROUGH TERRAIN SCISSOR LIFT
Strong capacity of 680kg (1500lb) with high working efficiency;
4WD and axle oscillation provide great off-road capability;
One-Click leveling function;
Bilateral power system effective to lower noise.
Work Height : 12mPlatform Extension : 1.3mPlatform Capacity : 1150kg
