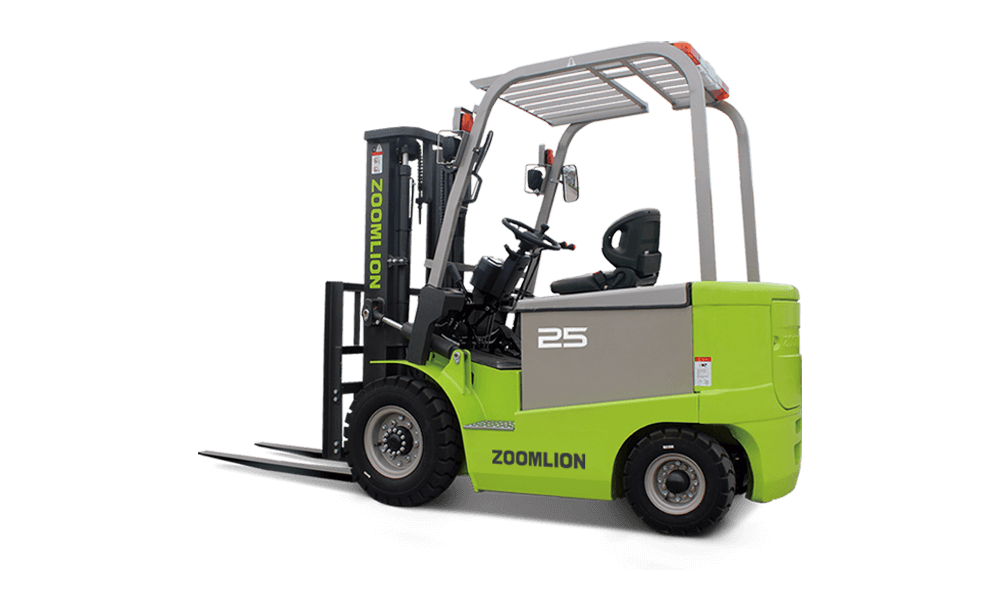

FB25Z ELECTRIC FORKLIFT
Alternate walking motor and lifting motor with automatic protection and free maintenance.
Curtis LED screen with settings of walking and lifting performance; it can monitor the running of motor, thus get working hours and fault code.
-
Maintenance free AC motor and Curtis controller are used to ensure smooth operation.
-
Optional lithium iron phosphate battery, maintenance free, zero pollution, fully charged within 2 hours, warranty period of 5 years/10,000H.
-
The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
| Rated capacity | 2500 kg |
| Load centre | 500 mm |
| Lifting height | 3000 mm |
| Free lifting height | 145 mm |
| Tilting angle | 6°/12° |
| Turning radius | 2090 mm |
| Front overhang | 475 mm |
| Tread | 454 mm |
| Wheelbase | 1450 mm |
| Fork spread(Min./Max.) | 1070 mm |
| Working aisle width with pallet(Ast) | 4035 mm |
| Service weight | - |
| Operating pressure for attachment | 142.8 kg/cm² |
| Travel (Laden) | 13 km/h |
| Travel(Unladen) | 14 km/h |
| Lifting(Laden) | 0.28 m/s |
| Lifting(Unladen) | 0.4 m/s |
| Lowering (Laden) | 0.45 m/s |
| Lowering(Unladen) | 0.4 m/s |
| Laden | 0.15 |
| Unladen | 0.15 |
| Driven motor | 11 kW |
| Pump motor | 14 kW |
| Battery | 48 V/630 Ah |
| Controller | AC |
| Rear Wheel | 18×7-8-14PR |
| Front Wheel | 7.00-12-12PR |
| Overall Dimension(L×H×W) | 3429 mm×1992 mm×1150 mm |
| Weight | 3950 kg |
