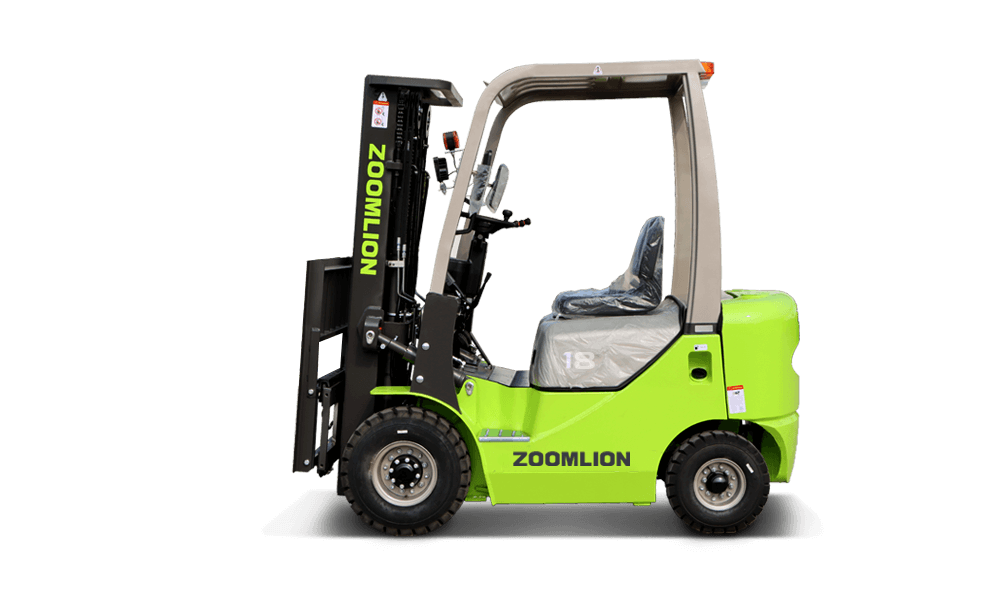

FD18Z INTERNAL COMBUSTION FORKLIFT
Well-designed pipe and joint,which adapt each other and makes the hydraulic system stable and machine durable.
The overhead guard is made by press welding,with 5 transparent plastic cover to make sure rainproof and good view.
In the hydraulic pipeline, the rubber tube and the joint adopt the conical surface seal form, the sealing effect is good, the long-term use will not seep the oil.
-
It can be equipped with Japanese engine, with strong power and low failure rate.
-
Spacious driving space. The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
-
Conical design is adopted for pipe joints to prevent oil leakage.
| Rated capacity | 1800Kg |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 115mm |
| Tilting angle | 6°/12° |
| Turning radius | 2060mm |
| Front overhang | 400mm |
| Tread | 390mm |
| Wheelbase | 1400mm |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 17.5MPa |
| Travel (Laden) | 14.5Km/h |
| Travel(Unladen) | 15.5Km/h |
| Lifting(Laden) | 390mm/s |
| Lifting(Unladen) | 420mm/s |
| Lowering (Laden) | ＜600mm/s |
| Lowering(Unladen) | ≥300mm/s |
| Laden | 0.2 |
| Unladen | - |
| Driven motor | - |
| Pump motor | - |
| Battery | 90Ah/12V |
| Controller | - |
| Rear Wheel | 6.5-10-10PR |
| Front Wheel | 5.00-8-10PR |
| Overall Dimension(L×H×W) | 2250×2040×1086 |
| Weight | 2900 |
