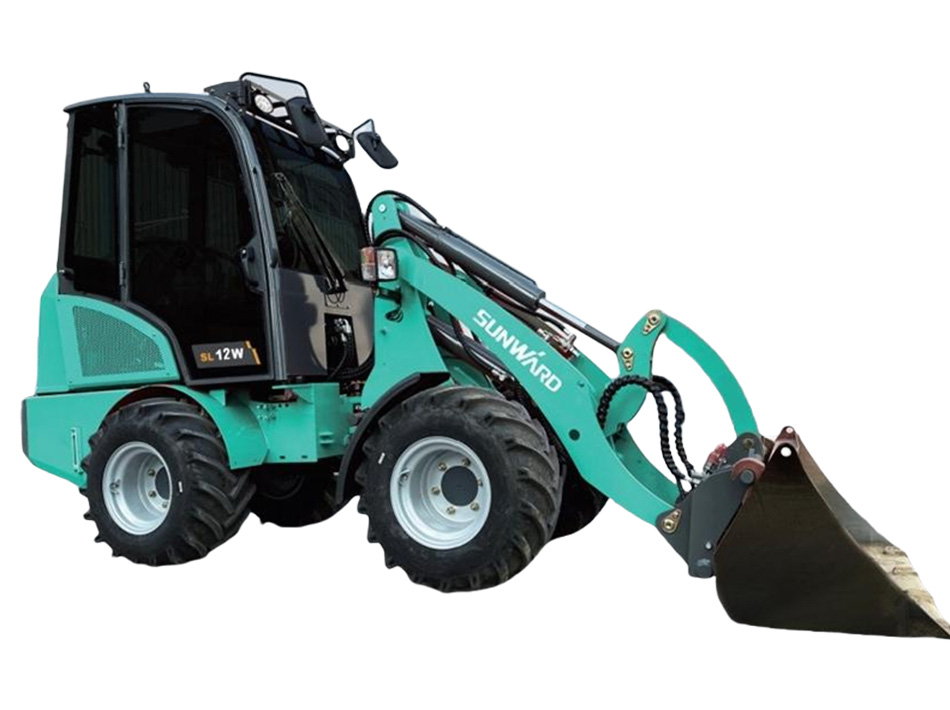

SL12W
Rated power/speed:18.5kW/2200rpm
Standard bucket capacity:0.38m³
Rated load capacity:1300kg
Technical Parameters
-
Overall machine parametersOverall length
4210 mm
Overall width1310 mm
Overall height2316 mm
Bucket capacity0.38 m³
Rated load1000 kg
Operating weight2500 kg
Max.digging force19 kN
Max.drawbar pull17 kN
Max.dumping height2029 mm
Max.dumping reach608 mm
Min.ground clearance240 mm
Wheelbase1550 mm
Wheel tread930 mm
Tyre specification31*15.5-15
EngineManufacturer/modelKubota D1703（Stage Ⅴ）
Rated power18.5 kw
Rated speed2200 r/min
Transmission systemTypeHydrostatic
Control form for gear shiftElectric control，staples shift
Travel speed12 km/h
BucketBucket width1500 mm
Bucket typeWith heavy-duty bucket tooth
-
Operating systemSteering system
Full hydraulic control
Min.swing radius3336 mm
Travel systemHydrostatic drive, four-wheel drive
-
Brake systemTravel brake
Drum brake
Parking brakeDrum brake
-
Stardard configurationCanopyElectric-controlled speed switch of joystick0.38 square bucketFloating functionQuick-hitch deviceThe third linkage attachment pipingPressure measuring valveItalian hydrostatic transmission systemFour-wheel drive
-
Optional configurationROPS&FOPSEnclosed cab（with maintenance window）Aircon(Standard configuration for enclosed cab)Fan heater(Standard configuration for enclosed cab)Radio/MP3(Standard configuration for enclosed cab)Engine preheaterLog grapple forkPallet forkGrass grapple forkFour-wheel driveGrass bale fork
