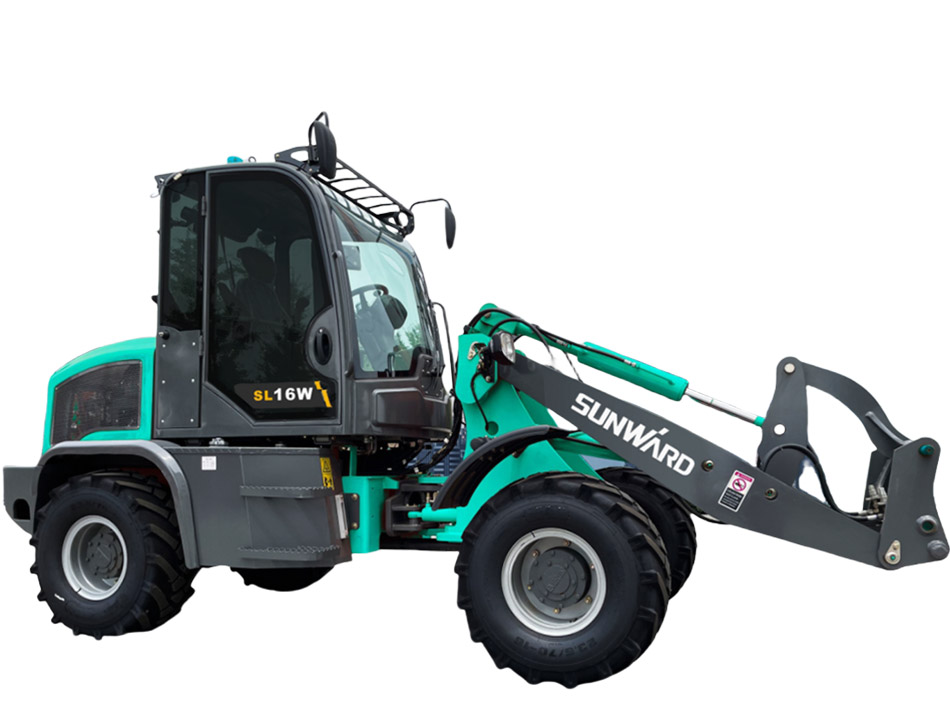

SL16W
Rated power/speed:45kW/2200rpm
Standard bucket capacity:0.73m³
Rated load capacity:1600kg
Technical Parameters
-
Overall machine parametersOverall length
5267 mm
Overall width1850 mm
Overall height2570 mm
Bucket capacity0.73 m³
Rated load1600 kg
Operating weight4400 kg
Max.digging force28 kN
Max.drawbar pull33 kN
Max.dumping height2453 mm
Max.dumping reach891 mm
Min.ground clearance475 mm
Wheelbase2476 mm
Wheel tread1510 mm
Tyre specification23.5/70-16
EngineManufacturer/modelDEF20CDF4（Stage Ⅴ）
Rated power45 kw
Rated speed2400 r/min
Transmission systemTypeHydraulic torque convertor
Control form for gear shiftElectric control
Travel speed22 km/h
BucketBucket width1850 mm
Bucket typeWith heavy-duty bucket tooth
-
Operating systemSteering system
Full hydraulic control
Min.swing radius4858 mm
Travel systemHydrostatic drive, four-wheel drive
-
Brake systemTravel brake
Drum brake
Parking brakeDrum brake
-
Stardard configurationROPS&FOPSEnclosed cab（with maintenance window）Electric-controlled speed switch of joystick0.73 square bucketFloating functionQuick-hitch deviceThe third linkage attachment pipingPressure measuring valveCold airconDieselEngine preheaterMP3 RadioCab with rear wiper
-
Optional configurationLog grapple forkPallet forkGrass grapple forkFour-wheel driveGrass bale fork
