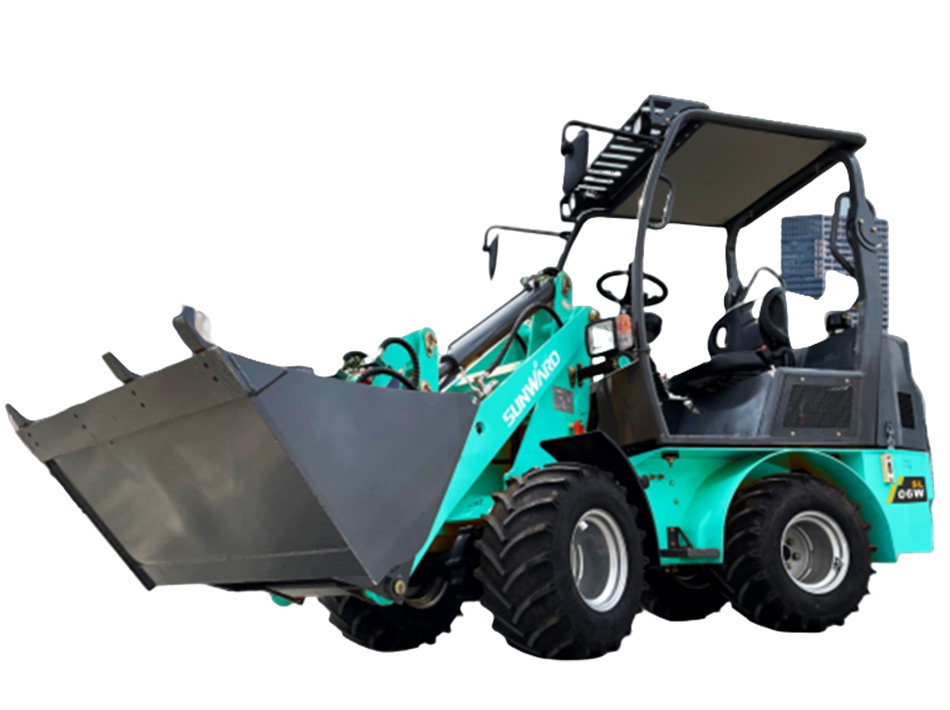

SL06W
Rated power/speed:18.2kW/2400rpm
Standard bucket capacity:0.26m³
Rated load capacity:600kg
Technical Parameters
-
Overall machine parametersOverall length
3673 mm
Overall width1150 mm
Overall height2250 mm
Bucket capacity0.26 m³
Rated load600 kg
Operating weight1700 kg
Max.digging force13 kN
Max.drawbar pull16.7 kN
Max.dumping height1821 mm
Max.dumping reach829 mm
Min.ground clearance220 mm
Wheelbase1378 mm
Wheel tread890 mm
Tyre specification26*12.12
EngineManufacturer/modelYanmar 3TNV88（Stage Ⅴ）
Rated power18.2 kw
Rated speed2200 r/min
Transmission systemTypeHydrostatic
Control form for gear shiftElectric control，staples shift
Travel speed12 km/h
BucketBucket width1200 mm
Bucket typeWith heavy-duty bucket tooth
-
Operating systemSteering system
Full hydraulic control
Min.swing radius2466 mm
Travel systemHydrostatic drive, four-wheel drive
-
Brake systemTravel brake
Hydrostatic brake
Parking brakeDrum brake
-
Stardard configurationCanopyElectric-controlled speed switch of joystick0.26 square bucketFloating functionQuick-hitch deviceThe third linkage attachment pipingPressure measuring valveItalian hydrostatic transmission systemFour-wheel drive
-
Optional configurationROPS&FOPSEnclosed cab（with maintenance window）Fan heater(Standard configuration for enclosed cab)Radio/MP3(Standard configuration for enclosed cab)Engine preheaterLog grapple forkPallet forkSnow removal plateFour-wheel driveGrass bale fork
