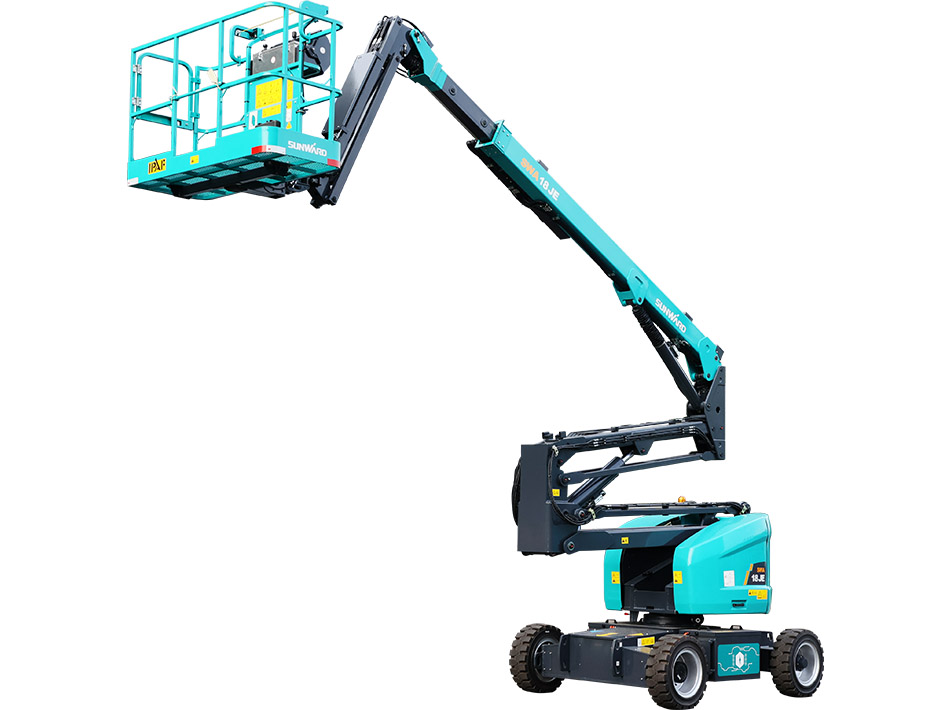

SWA18JE
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
18m
Maximum Platform Height16m
Max.platform range9.13m
Max.operating range9.6m
Max.up and over clearance7.8m
Length – Stored7.04m
Length – Transport5.21m
Height – Stored2.06m
Wheelbase2.0m
Overall Vehicle Width2.0m
Ground Clearance – Middle0.2m
Operating platform dimension1.83×0.76m
Rated load250kg
Max.number of people2
Platform rotation160°
Turtable rotation360°
Turntable tail swing0.2m
Max.travel speed-storage5.8km/h
Max.travel speed-lifting0.8km/h
Turning radius internal/external1.01/3.68m
Max.gradeability(counterweight upwards)30%
Max..gradeability(counterweight downwards)45%
Max.allowable operation angle of work5°
Power source51.2/405V/Ah
Engine power and speed—V/Ah
Drive motorAC-32/3.56V/kW
Hydrauilc oil tank capacity42L
Fuel tank capacity—L
Tire250-15/70
Overall weight7760kg
