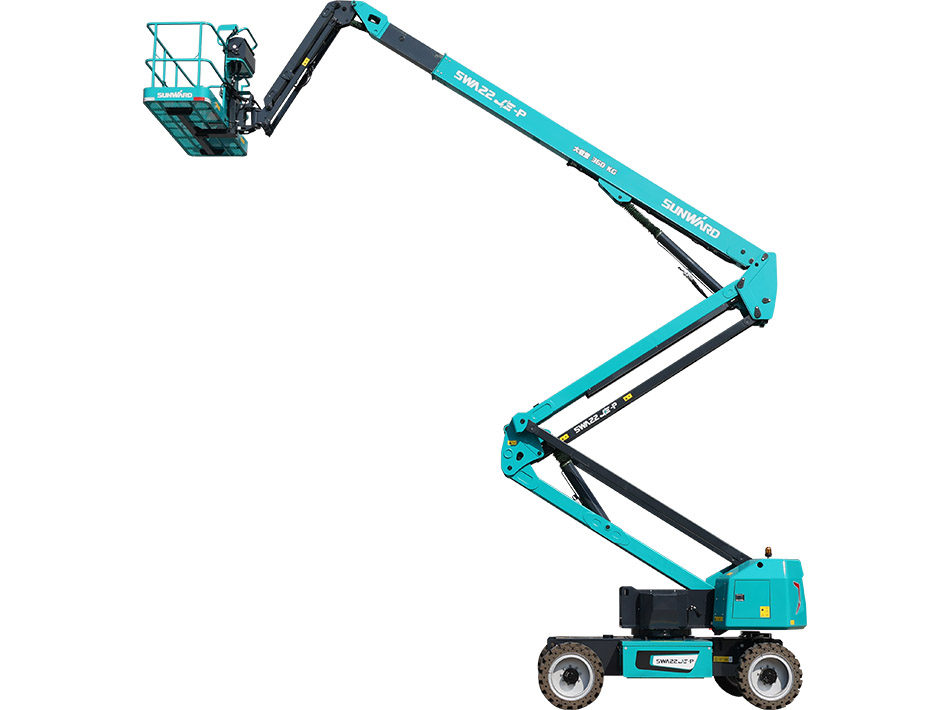

SWA22JE-P
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
22m
Maximum Platform Height20m
Max.platform range11.68m
Max.operating range12.28m
Max.up and over clearance8.95m
Length – Stored9.07m
Length – Transport9.07m
Height – Stored2.36m
Wheelbase2.0m
Overall Vehicle Width2.52m
Ground Clearance – Middle0.37m
Operating platform dimension2.44×0.91m
Rated load260/360kg
Max.number of people2
Platform rotation160°
Turtable rotation360°
Turntable tail swing0.68m
Max.travel speed-storage4.8km/h
Max.travel speed-lifting0.8km/h
Turning radius internal/external2.45/5.57m
Max.gradeability(counterweight upwards)45%
Max..gradeability(counterweight downwards)45%
Max.allowable operation angle of work5°
Power source51.2/375V/Ah
Engine power and speed—V/Ah
Drive motorAC-32/3.3V/kW
Hydrauilc oil tank capacity100L
Fuel tank capacity—L
Tire33X12-20
Overall weight10160kg
