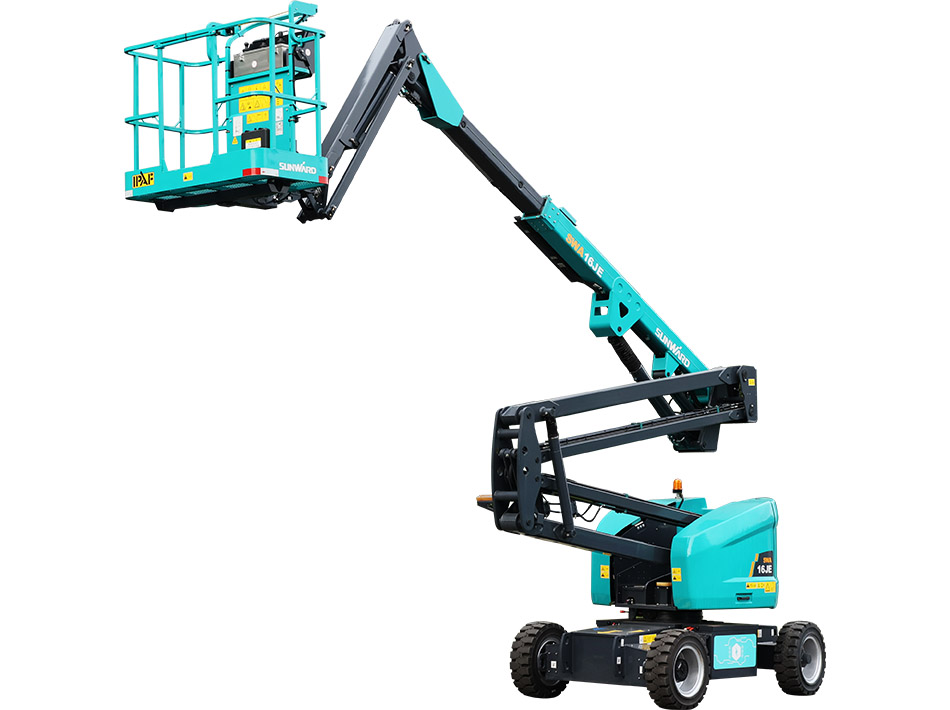

SWA16JE
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
15.8m
Maximum Platform Height13.8m
Max.platform range7.54m
Max.operating range8.14m
Max.up and over clearance7.6m
Length – Stored6.63m
Length – Transport5.7m
Height – Stored2.13m
Wheelbase2m
Overall Vehicle Width1.75m
Ground Clearance – Middle0.2m
Operating platform dimension1.52×0.76m
Rated load230kg
Max.number of people2
Platform rotation180°
Turtable rotation360°
Turntable tail swing0.2m
Max.travel speed-storage5.2km/h
Max.travel speed-lifting0.8km/h
Turning radius internal/external1.15/3.58m
Max.gradeability(counterweight upwards)30%
Max..gradeability(counterweight downwards)25%
Max.allowable operation angle of chassis3°
Power source48/351V/Ah
Engine power and speed—V/Ah
Drive motorAC-32/3.56V/kW
Hydrauilc oil tank capacity42L
Fuel tank capacity—L
Tyre250-15/70
Overall weight7750kg
相关产品
-

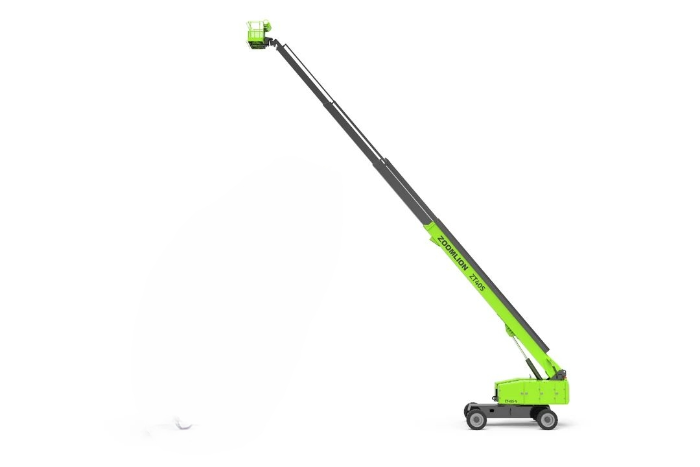

ZT23JE ELECTRIC TELESCOPIC BOOM LIFTS
-
