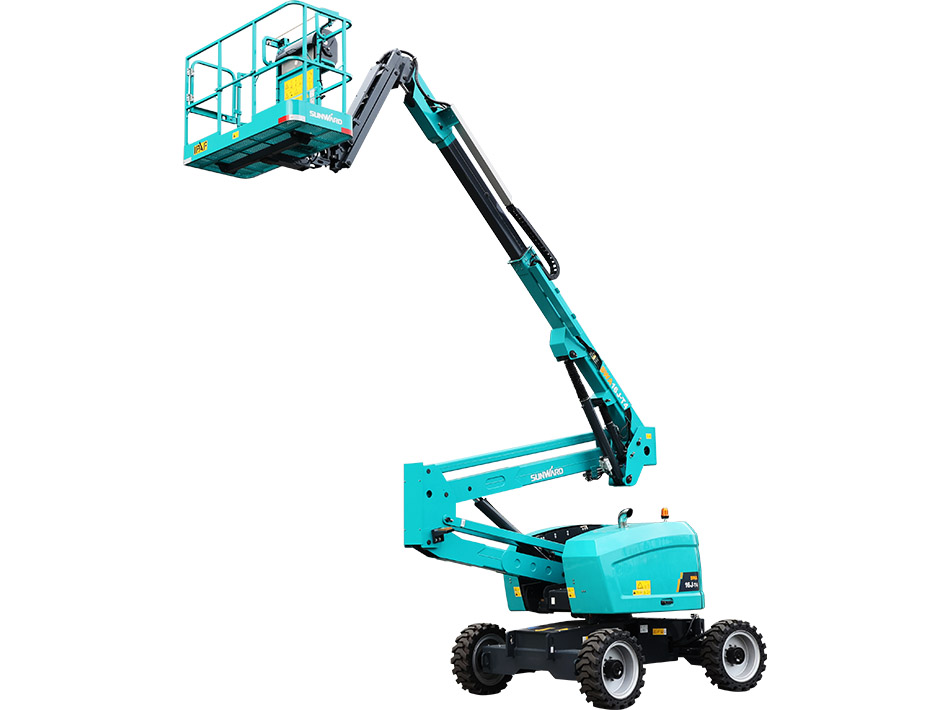

SWA16J-T4
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
16m
Maximum Platform Height14m
Max.platform range8.02m
Max.operating range8.62m
Max.up and over clearance7.6m
Length – Stored6.92m
Length – Transport5.9m
Height – Stored2.17m
Wheelbase2.25m
Overall Width2.3m
Ground Clearance – Middle0.35m
Operating platform dimension1.83×0.76m
Rated load250kg
Max.number of people2
Platform rotation160°
Turtable rotation360°
Turntable tail swing0m
Max.travel speed-storage6.8km/h
Max.travel speed-lifting0.8km/h
Turning radius internal/external2.09/4.98m
Max.gradeability(counterweight upwards)40%
Max..gradeability(counterweight downwards)45%
Max.allowable operation angle of chassis5°
Power sourceKubota v2403
YCF3050-T426Engine power and speed36/2600 kW/rpm
36/2300kW/rpmDrive motor12V/kW
Hydrauilc oil tank capacity82L
Fuel tank capacity73L
Tyre33×12-20
Overall weight7650kg
