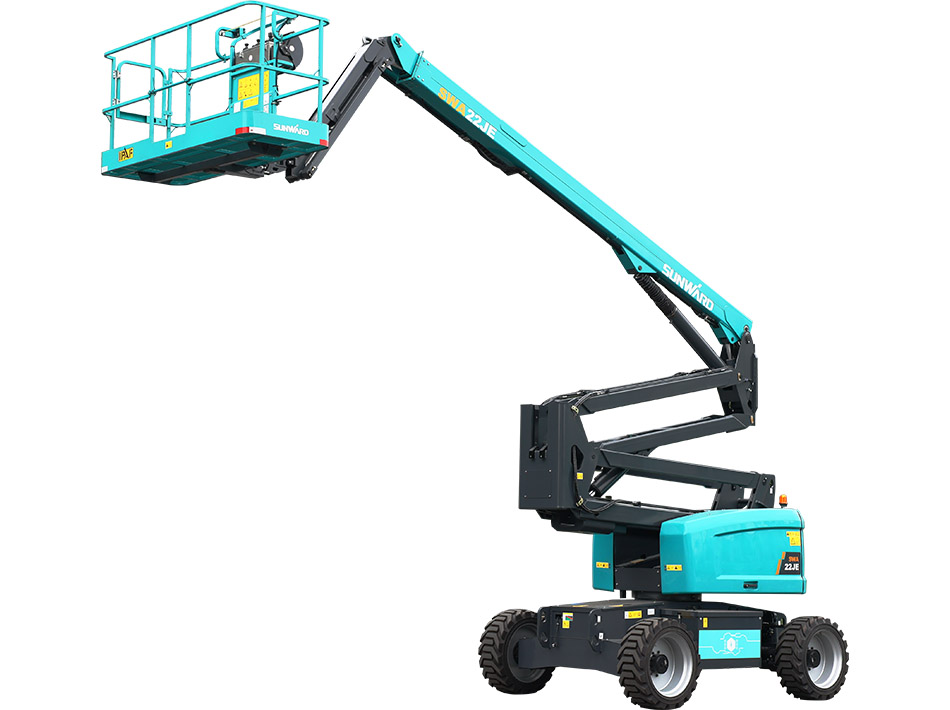

SWA22JE
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
21.6m
Maximum Platform Height19.6m
Max.platform range11.5m
Max.operating range12.1m
Max.up and over clearance8.9m
Length – Stored8.92m
Length – Transport6.7m
Height – Stored2.58m
Wheelbase2.49m
Overall Vehicle Width2.49m
Ground Clearance – Middle0.35m
Operating platform dimension2.44×0.91m
Rated load250kg
Max.number of people2
Platform rotation160°
Turtable rotation360°
Turntable tail swing0.55m
Max.travel speed-storage5.8km/h
Max.travel speed-lifting0.8km/h
Turning radius internal/external2.1/5.26m
Max.gradeability(counterweight upwards)40%
Max..gradeability(counterweight downwards)40%
Max.allowable operation angle of work5°
Power source48/420V/Ah
Engine power and speed—V/Ah
Drive motorAC-32/3.33V/kW
Hydrauilc oil tank capacity84L
Fuel tank capacity—L
Tire355/55-24
Overall weight10070kg
