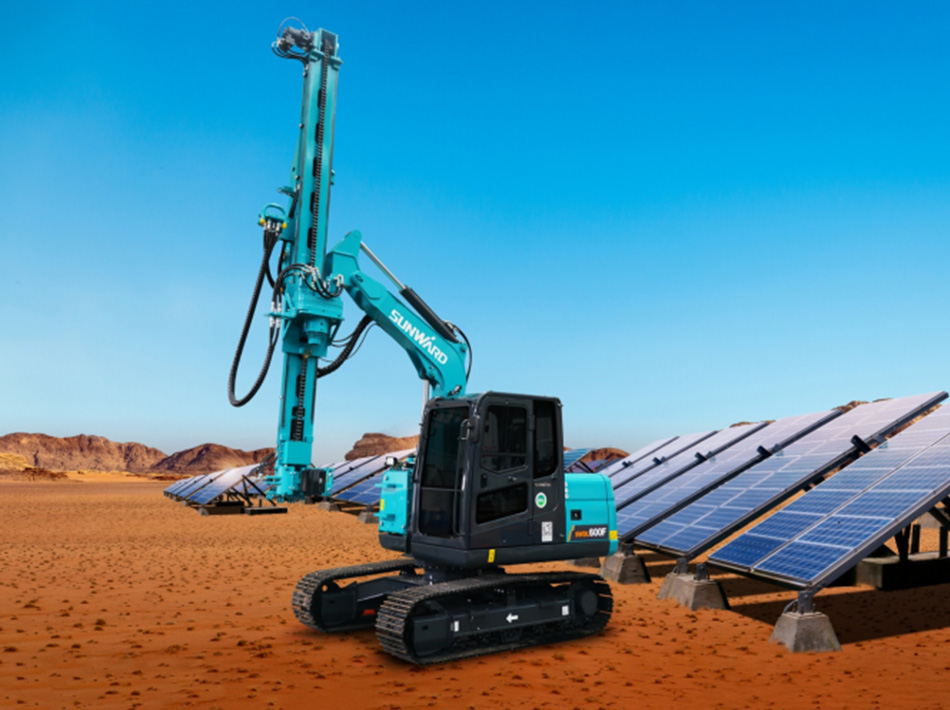

SWDL600F
Working diameter: 76~114mm
Height of the helical pile: 3.6m
76~114mmWorking diameter
3.6mHeight of the helical pile
115~300mmHelical drilling diameter
3.6mDrilling depth
SCS435Hammer model
1150JImpact energy
×
Technical Parameters
-
Main parametersWorking diameter
76~114 mm
Height of the helical pile3.6 m
Helical drilling diameter115~300 mm
Drilling depth3.6 m
Hammer modelSCS435
Impact energy1150 J
Drilling tool rotational speed80 rpm
Rotational torque600 Nm
Advancing stroke3500 mm
Advancing speed2 m/min
Engine power46.2 kW
Engine rotational speed2200 rpm
Travelling speed4.1/ 2.4 km/h
Climbing capability30 °
Total weight8.9 t
DIMISIONS(L×W×H)6254×2270×2723 mm
