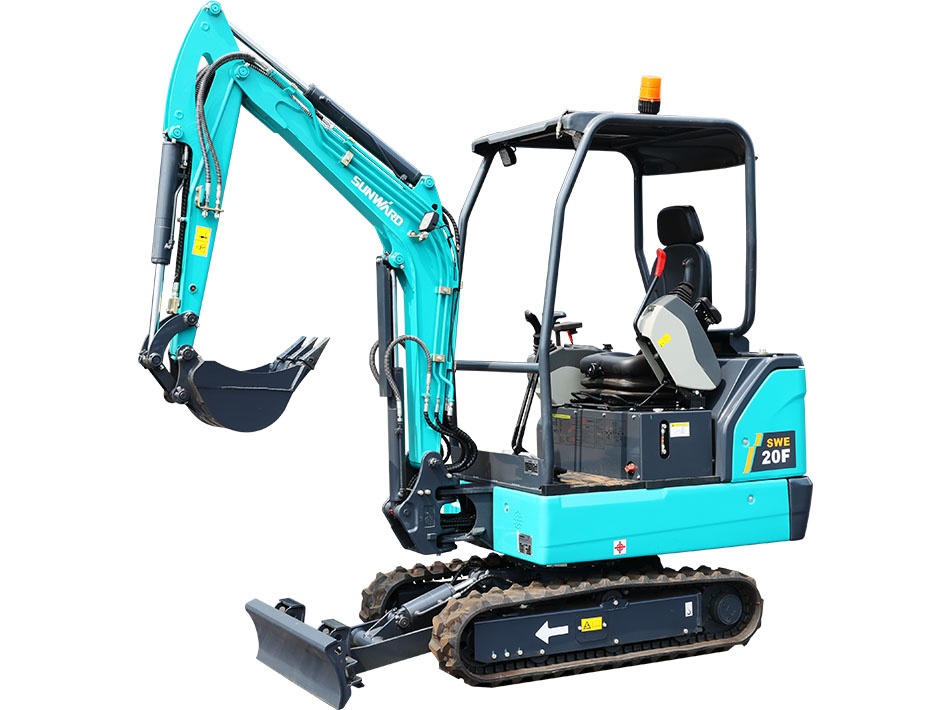

SWE20F
Operating Weight: 1940kg
Bucket Capacity: 0.04m3
Technical Parameters
-
Basic ParameterOperating Weight
1940 kg
Bucket Capacity0.04 m3
-
Overall DimensionOverall Length
3905 mm
Overall Height2235 mm
Overall Width990 mm
Counterweight Clearance460 mm
Ground Clearance160 mm
Tail Swing Radius1120 mm
Length to Center of Rollers1210 mm
Track Length1540 mm
Track Gauge760/1130 mm
Track Width990/1360 mm
Track Shoe Width230 mm
Max. Height of Cab2235 mm
Uppercarriage Width990 mm
-
Working RangeBoom Length
1800 mm
Arm Length1150 mm
Max. Digging Height3770 mm
Max. Dumping Height2720 mm
Max. Digging Depth2380 mm
Max. Depth Cut for 2440 mm Level Bottom1375 mm
Max. Vertical Digging Depth1870 mm
Max. Digging Reach4040 mm
Max. Digging Reach at Ground Level3945 mm
Min. Front Swing Radius1580 mm
Min. Front Swing Radius295 mm
Max. Raising Height above Ground of Dozer Blade360 mm
Max. Lowering Depth from Ground of Dozer Blade225 mm
-
PerformanceBucket Digging Force
22.7 kN
Arm Digging Force9.8 kN
Max. Drawbar Pull18.1 kg
Gradeability57 %
Ground Pressure30 kPa
Travel Speed(Max/Min)3.5/2 km/h
Swing Speed10 rpm
-
Oil Tank CapacityFuel Tank Capacity
23 L
Hydraulic Tank Capacity35 L
-
EngineModel
3TNV80-SSU Stage Ⅴ/3TNV80F-SSSU Tier Ⅳ
Rated Power13.4/2200 kw/rpm
Max. Torque67.4/1600 N.m/rpm
Displacement1.267 L
-
Hydraulic SystemMain pumpType
Two variable plunger pump，One gear pump，One pilot pump
Max.Flow2*21+13+6 L/min
System Pressure21/16 MPa
Pilot pumpType–
Max.Flow– L/min
Pressure3.9 MPa
Flow of Aux 1（break）36 L/min
Flow of Aux 221 MPa
