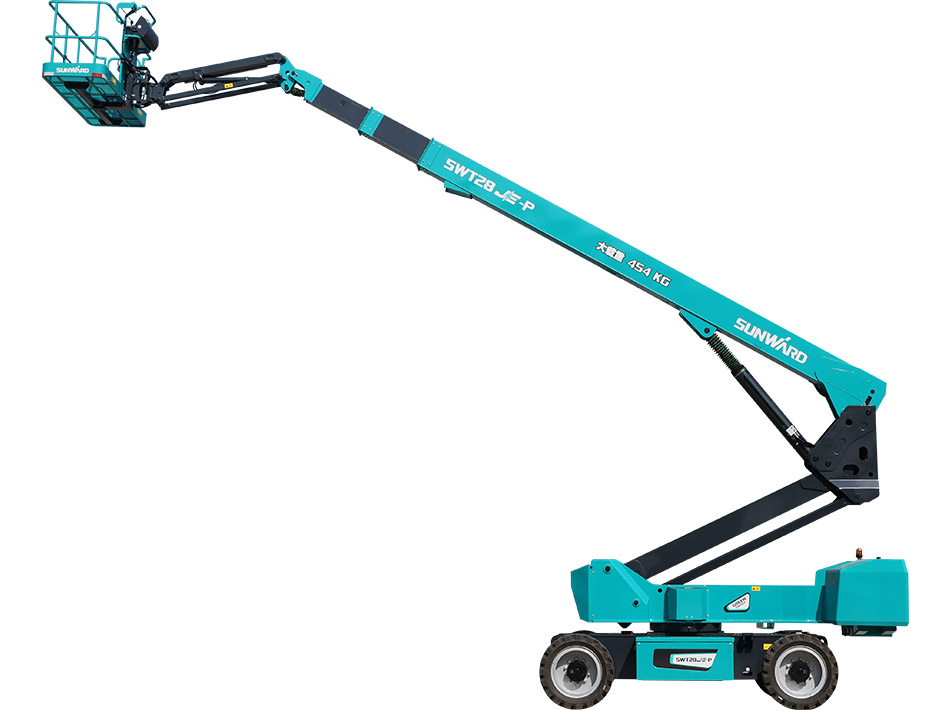

SWT28JE-P

SWT28JE-P

* The working height equals to the platform height plus 2 m.

* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability

28.2mMax.operating height
26.2mMax.platfrom height
18mMax.platform range
18.6mMax.operating range
10.9mLength - Stored
2.49mOverall width
×

    Name

    Email

    Requirement Description

    SKU: SWT28JE-P 分类: All Machinery, Articulated Boom Lifts, BOOM LIFT, Sunward 标签: sunwardmachine 品牌: Sunward
    Share
    0
    • 描述
    Technical Parameters
    • Overall machine parameters
      Max.operating height

      28.2m

      Maximum Platform Height

      26.2m

      Max.platform range

      18m

      Max.operating range

      18.6m

      Max.up and over clearance

      -m

      Length – Stored

      10.9m

      Length – Transport

      8.8m

      Height – Stored

      2.85m

      Wheelbase

      3m

      Overall Vehicle Width

      2.49m

      Ground Clearance – Middle

      0.35m

      Operating platform dimension

      2.44×0.91m

      Rated load

      300/454kg

      Max.number of people

      3

      Platform rotation

      180°

      Turtable rotation

      360°

      Turntable tail swing

      1.9m

      Max.travel speed-storage

      4.8km/h

      Max.travel speed-lifting

      1.1km/h

      Turning radius internal/external

      3.6/6.8m

      Max.gradeability(counterweight upwards)

      45%

      Max..gradeability(counterweight downwards)

      30%

      Max.allowable operation angle of work

      5°

      Power source

      83.2/460V/Ah

      Engine power and speed

      —V/Ah

      Drive motor

      AC-52/4.2V/kW

      Hydrauilc oil tank capacity

      150L

      Fuel tank capacity

      —L

      Tire

      15-24

      Overall weight

      14800kg
