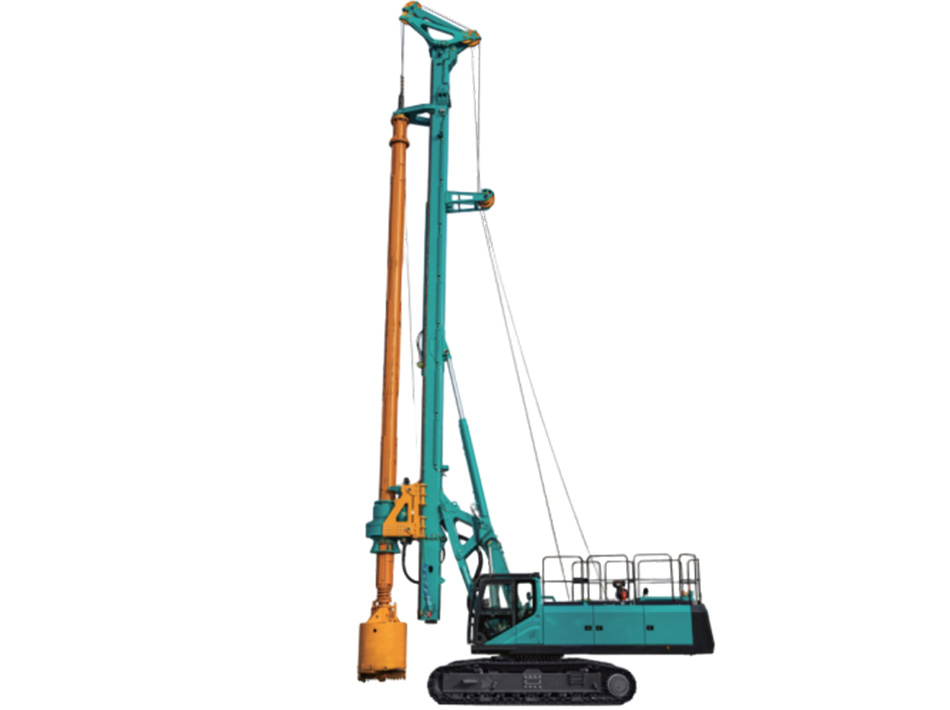

SWDM240W
Max.Drilling Diameter：1800mm
Operating Weight：78t
Rated Power：277kW2100rpm
1800mmMax.Drilling Diameter
78tOperating Weight
69m/54mMax. depth
277kW/2100rpmRated Power
248kN.mMax torque(nominal)
×
Technical Parameters
-
DrillingMax. diameter
1800mm
Max. depth69m/54m
-
EngineMode
X12
Rated Power277kW/2100rpm
-
RotaryMax torque (nominal)
248kN.m
Speed of rotation6-28rpm
-
Main WinchMax. pulling force
280kN
Max.line speed72m/min
Rop diameter32mm
-
CrowdMax.pull down force
280kN
Max.pull up force280kN
Max.stroke15800mm
-
Auxilliary WinchMax. pulling force
80kN
Max.line speed58m/min
Rop diameter20mm
-
Dril MastInclination(L/R)
±5°
Inclination(F/R)5°/90°
-
ChassisCrawler Width
800mm
Crawler retractble width3000-4500mm
Chassis Length5755mm
-
Complete MachineOperation height
23411mm
Transportation width3000mm
Operation weight78000kg
-
Drill pipe parametersInterlocking kellyKelly Bar
JS440-4X13m/JS440-4X15m
Hole depth(m)46m/54m
Drill pipe weight(kg)9420/10700
Friction kellyKelly BarMZ440-5X15m
Hole depth(m)69m
Drill pipe weight(kg)11900
