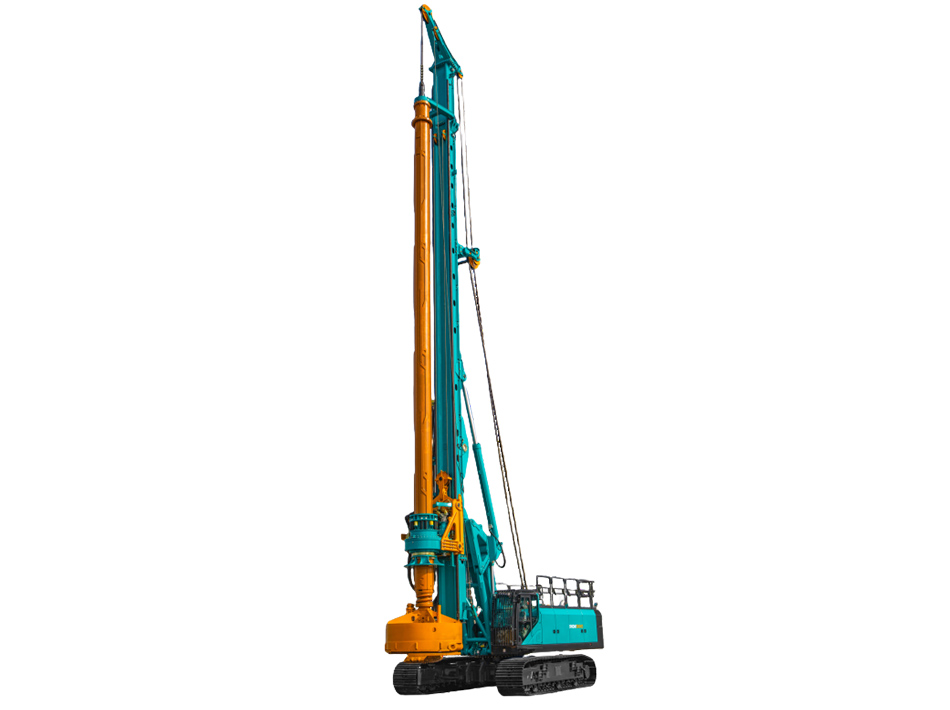

SWDM360H3

Technical Parameters

• Drilling
  Max. Pile Diameter

  2500(3000)mm

  Max. Pile Depth

  102/66m

• Engine
  Mode

  QSX15-C550

  Rated Power

  410@2100kW@rpm

• Rotary
  Max. Torque

  418kN.m

  Rotation Speed

  6~25rpm

• Main Winch
  Max.line pull

  390kN

  Max.line speed

  76m/min

  Rop diameter

  40mm

• Crowd System
  Max. Pressure

  340kN

  Max. Line Pull

  380kN

  Max. Stroke

  13000mm

• Auxilliary Winch
  Max. Line Pull

  110kN

  Max. Line Speed

  65m/min

  Rope Diameter

  24mm

• Dril Mast
  Lateral Inclination

  ±4°

  Forward & Rearward Inclinaition

  5°/90°

• Chassis
  Crawler Width

  900mm

  Crawler retractble width

  3300~4800mm

  Chassis Length

  6121mm

• Overall Machine
  Working Height

  27189mm

  Operation weight

  134t

• Drill pipe parameters
  SWDM360H3
  Friction Kelly Bar

  580-6X18.4m/580-6X14.5m/580-6X12.5m

  Hole depth (m)

  102/78/66

  Drill pipe weight (kg)

  21000/17177/15216

  SWDM360H3
  Interlocking Kelly Bar

  580-4X18.4m/580-4X14.5m/580-4X12.5m

  Hole depth (m)

  66/48/43

  Drill pipe weight (kg)

  19900/16144/14220
