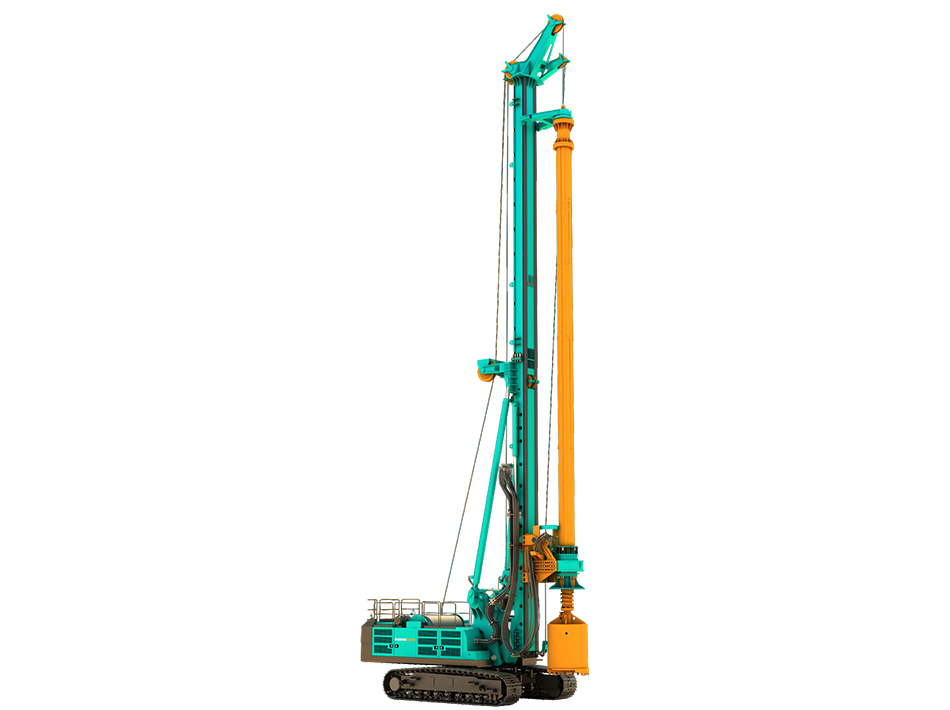

SWDM450V

Technical Parameters

• Drilling
  Max.Drilling Diameter

  3000mm

  Max.Drilling depth

  121m/78m

• Engine
  Mode

  QSX15-C600

  Rated Power

  448kW/2100rpm

• Rotary
  Max. Torque

  450kN.m

  Speed of rotation

  6~25rpm

• Main Winch
  Max.line pull

  490kN

  Max.line speed

  70m/min

  Rop diameter

  40mm

• Crowd
  Max.pull down force

  420kN

  Max.pull up force

  420kN

  Max. Stroke

  10000mm

• Auxilliary Winch
  Max.pulling force

  110kN

  Max. Line Speed

  65m/min

  Rope Diameter

  24mm

• Dril Mast
  Inclination(L/R)

  p4°

  Inclination(L/R)

  15°/90°

• Chassis
  Crawler Width

  900mm

  Crawler retractble width

  3400-5000mm

  Chassis Length

  7030mm

• Drill pipe parameters
  Interlocking kelly
  Spec.

  JS580-4X18m/JS580-4X22m

  Drilling depth (m)

  64/78

  Wight (kg)

  19500/22500

  Friction kelly
  Spec.

  MZ580-6X18m/MZ580-6X22m

  Drilling depth (m)

  98/121

  Wight (kg)

  20600/23500
