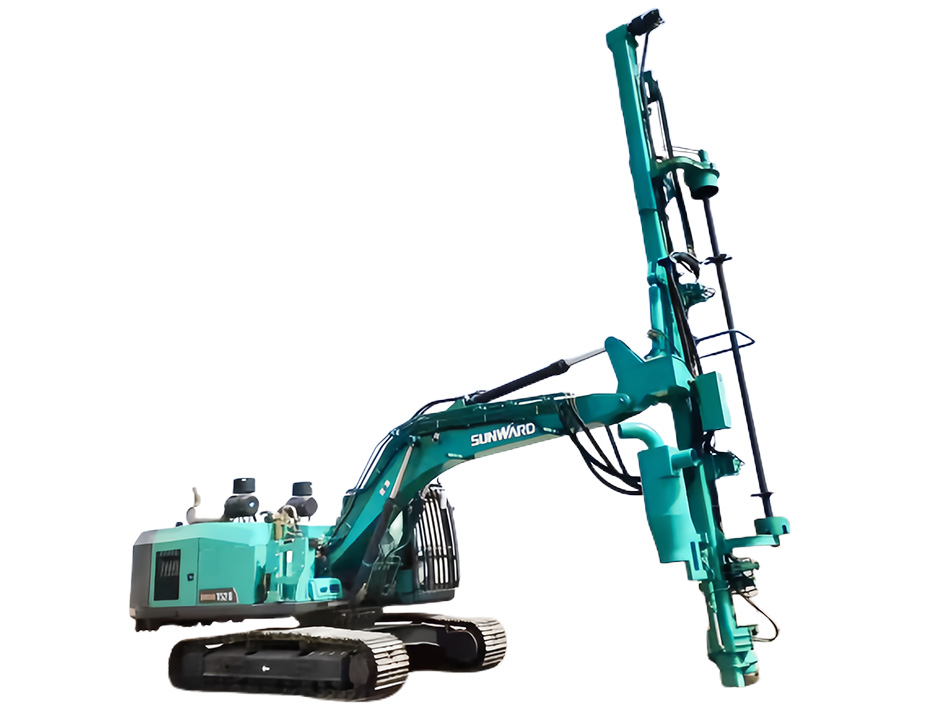

SWDR152B
Drilling range: 105~165mm
Economic hole diameter: 140m
Technical Parameters
-
Operation parametersDrilling range
105~165 mm
Economic hole diameter140 mm
Drill pipe diameter76 、89 、102 mm
Drill pipe length5mx6 m
Maximum hole depth30 m
Maximum hole depth360 °
Slewing speed0-200 rpm
Slewing torque5000 Nm
Traveling speed3.5/5.6 km/h
Max. traction200 kN
Gradeability25 °
Ground clearance480 mm
-
PropulsionTotal length of propulsion beam
9800 mm
Maximum propulsion50 kN
-
EngineModel
X12CS3-277
Engine power277/2100 kW/rpm
Capacity of fuel tank790 L
-
Air compressorExhaust working pressure
21 bar
Displacement21.8 m³/min
-
DimensionOverall weight
24000 kg
L × W × H (Working)10.7×3.7×9.8 m
L × W × H (Transportation)15.6×3.0x3.6 m
