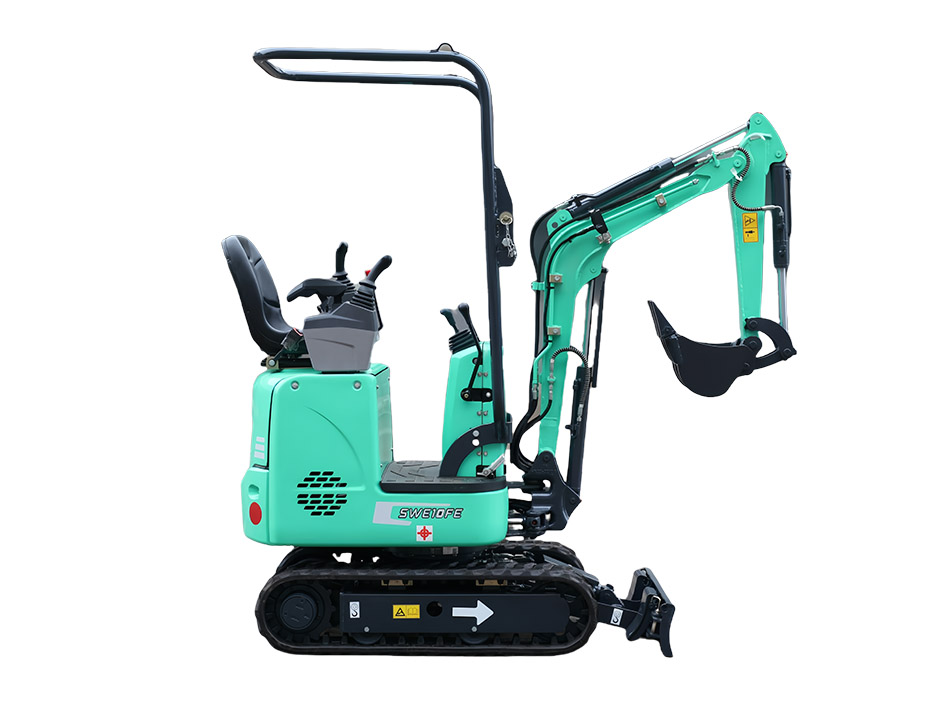

SWE10FE

Technical Parameters

• Basic Parameter
  Total weight

  1010 kg

  Engine power

  5.5 kW

  Bucket capacity

  0.022〜0.051m ³

• Motor
  Type

  Three-phase asynchronous

  Rated power

  5.5 kW

  Rated torque

  19.4 N·m

• Battery
  Type

  Lithium Iron Phosphate

  Capacity

  13.5 kWh

  Voltage

  73.6 V

  MIndicative time

  4〜6 h

• Hydraulic system
  Main pump type

  Gear pump

  Max.flow

  2X9.9 L/min

  Pilot pump type

  Gear pump

  Max.pilot flow

  9.9 L/min

  Pilot pressure

  3.9 Mpa

• Performance
  Swing speed

  8.5 rpm

  Travel speed

  2.9/1.5 km/h

  Gradeability

  57.7 %

  Ground pressure

  24.5 kPa

• Oil tank capacity
  Hydraulic oil

  10.7 L

• Working range、Digging force
  Boom length

  1350 mm

  Arm length

  700 mm

  Max.digging height

  2505 mm

  Max.dump height

  1720 mm

  Max.digging depth

  1440 mm

  Digging depth(2.44m horizontal)

  / mm

  Max.vertical digging depth

  1085 mm

  Max.digging reach

  2845 mm

  Max.ground digging reach

  2735 mm

  Min.front swing radius

  1350 mm

  Max.lifting height of dozer blade

  225 mm

  Max.digging depth of dozer blade

  225 mm

  Boom deflection angle（R/L)

  73/53 mm

  Bucket digging force

  9.4 kN

  Arm digging force

  5.8 kN

• Overall dimension
  Total length

  2675 mm

  Total height

  2275 mm

  Total width

  750/1000 mm

  Counter ground height

  420 mm

  Min.ground height

  130 mm

  Tail swing radius

  775 mm

  Track ground length

  975 mm

  Track length

  1300 mm

  Track gauge

  570/820 mm

  Track width

  750/1000 mm

  Track shoe width

  180 mm

  Max.height of main machine

  2275 mm

  Turntable height

  740 mm
