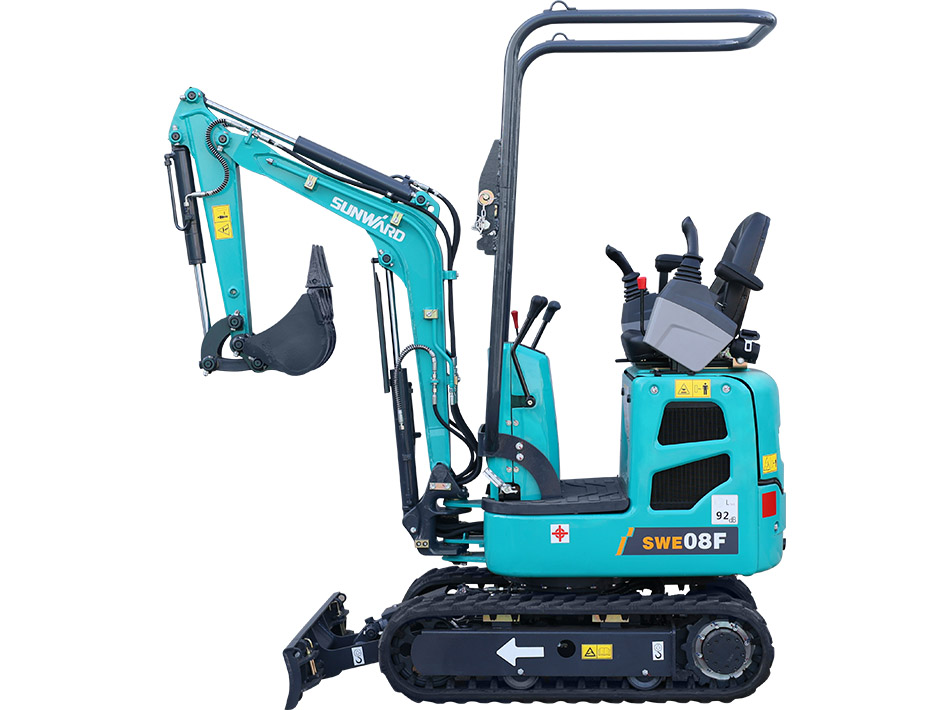

SWE08F
Operating Weight: 1010kg
Bucket Capacity: 0.022m3
Technical Parameters
-
Basic ParameterOperating Weight
1010 kg
Bucket Capacity0.022 m3
-
Overall DimensionOverall Length
2640 mm
Overall Height2275 mm
Overall Width750 mm
Counterweight Clearance420 mm
Ground Clearance130 mm
Tail Swing Radius750 mm
Length to Center of Rollers975 mm
Track Length1300 mm
Track Gauge570/820 mm
Track Width750/1000 mm
Track Shoe Width180 mm
Max. Height of Cab2275 mm
Uppercarriage Width740 mm
-
Working RangeBoom Length
1350 mm
Arm Length700 mm
Max. Digging Height2505 mm
Max. Dumping Height1770 mm
Max. Digging Depth1450 mm
Max. Depth Cut for 2440 mm Level Bottom– mm
Max. Vertical Digging Depth1085 mm
Max. Digging Reach2850 mm
Max. Digging Reach at Ground Level2740 mm
Min. Front Swing Radius1580 mm
Min. Front Swing Radius1350 mm
Max. Raising Height above Ground of Dozer Blade225 mm
Max. Lowering Depth from Ground of Dozer Blade225 mm
-
PerformanceBucket Digging Force
9.4 kN
Arm Digging Force5.8 kN
Max. Drawbar Pull8.3 kg
Gradeability57 %
Ground Pressure24.5 kPa
Travel Speed(Max/Min)2.9/1.5 km/h
Swing Speed8.2 rpm
-
Oil Tank CapacityFuel Tank Capacity
10 L
Hydraulic Tank Capacity9.5 L
-
EngineModel
2TNV70-PSU/Stage Ⅴ
Rated Power7.2/2400 kw/rpm
Max. Torque34.4/1800 N.m/rpm
Displacement0.57 L
-
Hydraulic SystemMain pumpType
Quantitative gear pump
Max.Flow9.6+9.6 L/min
System Pressure16 MPa
Pilot pumpTypeQuantitative gear pump
Max.Flow9.6 L/min
Pressure3.9 MPa
Flow of Aux 1（break）19.2 L/min
Flow of Aux 2– MPa
