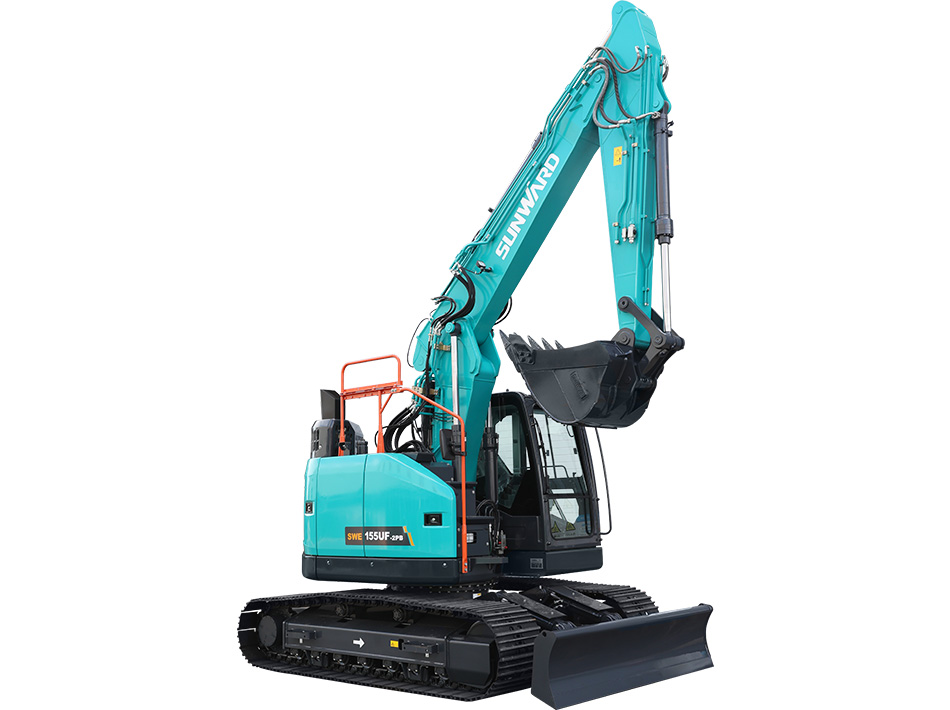

SWE155UF-2PB
Operating Weight: 17000kg
Bucket Capacity: 0.61m3
Technical Parameters
-
Basic ParameterOperating Weight
17000 kg
Bucket Capacity0.61 m3
-
Overall DimensionOverall Length
7945 mm
Overall Height2945 mm
Overall Width2600 mm
Counterweight Clearance930 mm
Ground Clearance410 mm
Tail Swing Radius1490 mm
Length to Center of Rollers3000 mm
Track Length3765 mm
Track Gauge2000 mm
Track Width2600 mm
Track Shoe Width600 mm
Max. Height of Cab2945 mm
Uppercarriage Width2490 mm
-
Working RangeBoom Length
1980+2820 mm
Arm Length2500 mm
Max. Digging Height9645 mm
Max. Dumping Height7140 mm
Max. Digging Depth5600 mm
Max. Depth Cut for 2440 mm Level Bottom5490 mm
Max. Vertical Digging Depth4645 mm
Max. Digging Reach8490 mm
Max. Digging Reach at Ground Level8345 mm
Min. Front Swing Radius2090 mm
Max. Raising Height above Ground of Dozer Blade520 mm
Max. Lowering Depth from Ground of Dozer Blade558 mm
-
PerformanceBucket Digging Force
100 kN
Arm Digging Force76 kN
Max. Drawbar Pull118 kN
Gradeability57 %
Ground Pressure42.5 kPa
Travel Speed(Max/Min)5.3/3.2 km/h
Swing Speed11 rpm
-
Oil Tank CapacityFuel Tank Capacity
180 L
Hydraulic Tank Capacity150 L
-
EngineModel
F3.8/Stage Ⅴ/Tier Ⅳ
Rated Power90/2200 kw/rpm
Max. Torque500/1500 N.m/rpm
Displacement3.8 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow165*2+44 L/min
System Pressure34.3/31.4 MPa
Pilot pumpTypeGear pump
Max.Flow22 L/min
Pressure3.9 MPa
Flow of Aux 1（break）165 L/min
Flow of Aux 244 L/min
