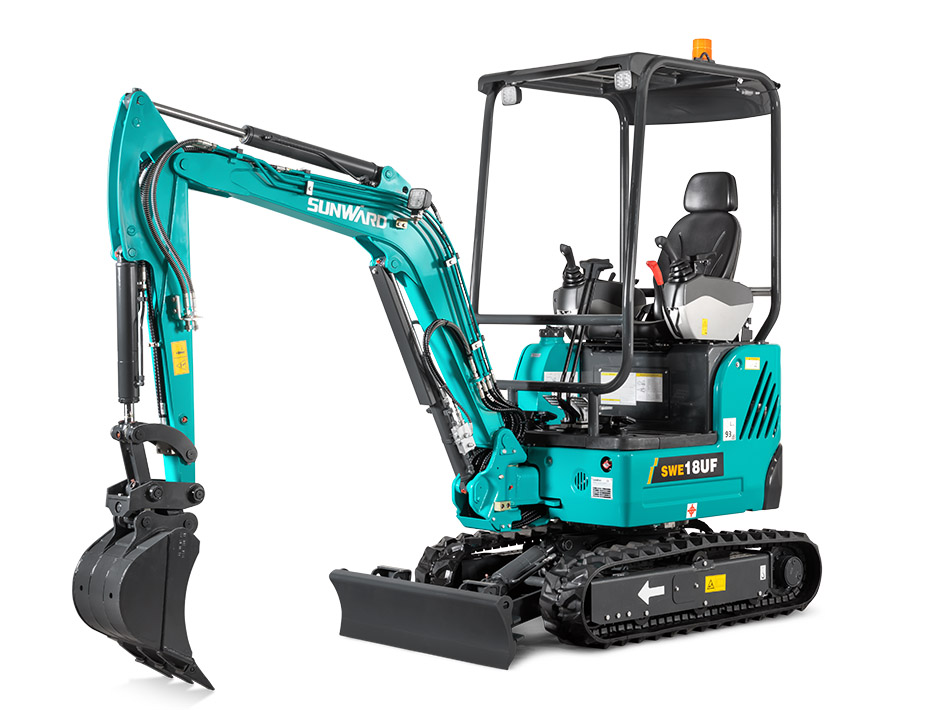

SWE18UF
Operating Weight: 1880kg
Bucket Capacity: 0.04m3
Technical Parameters
-
Basic ParameterOperating Weight
1880 kg
Bucket Capacity0.04 m3
-
Overall DimensionOverall Length
3580 mm
Overall Height2400 mm
Overall Width990/1360 mm
Counterweight Clearance470 mm
Ground Clearance180 mm
Tail Swing Radius680 mm
Length to Center of Rollers1210 mm
Track Length1540 mm
Track Gauge760/1130 mm
Track Width990/1360 mm
Track Shoe Width230 mm
Max. Height of Cab2400 mm
Uppercarriage Width980 mm
-
Working RangeBoom Length
1800 mm
Arm Length1150 mm
Max. Digging Height3640 mm
Max. Dumping Height2560 mm
Max. Digging Depth2390 mm
Max. Depth Cut for 2440 mm Level Bottom1820 mm
Max. Vertical Digging Depth1860 mm
Max. Digging Reach4160 mm
Max. Digging Reach at Ground Level4060 mm
Min. Front Swing Radius1760 mm
Max. Raising Height above Ground of Dozer Blade240 mm
Max. Lowering Depth from Ground of Dozer Blade290 mm
-
PerformanceBucket Digging Force
22.7 kN
Arm Digging Force9.8 kN
Max. Drawbar Pull19.6 kg
Gradeability57 %
Ground Pressure30.3 kPa
Travel Speed(Max/Min)4.4/2.3 km/h
Swing Speed10 rpm
-
Oil Tank CapacityFuel Tank Capacity
24.6 L
Hydraulic Tank Capacity18.6 L
-
EngineModel
3TNV80-SSU/Stage Ⅴ/Korea Ⅴ D1105/Stage Ⅴ/Tier Ⅳ/Korea Ⅴ
Rated Power13.4/2200 kw/rpm 14/2200 kw/rpm
Max. Torque67.4/1600 N.m/rpm 71.4/1600 N.m/rpm
Displacement1.267 L1.123 L
-
Hydraulic SystemMain pumpType
One variable plunger pump
Max.Flow62 L/min
System Pressure24.5 MPa
Pilot pumpType–
Max.Flow– L/min
Pressure3.5 MPa
Flow of Aux 1（break）45 L/min
Flow of Aux 245 MPa
