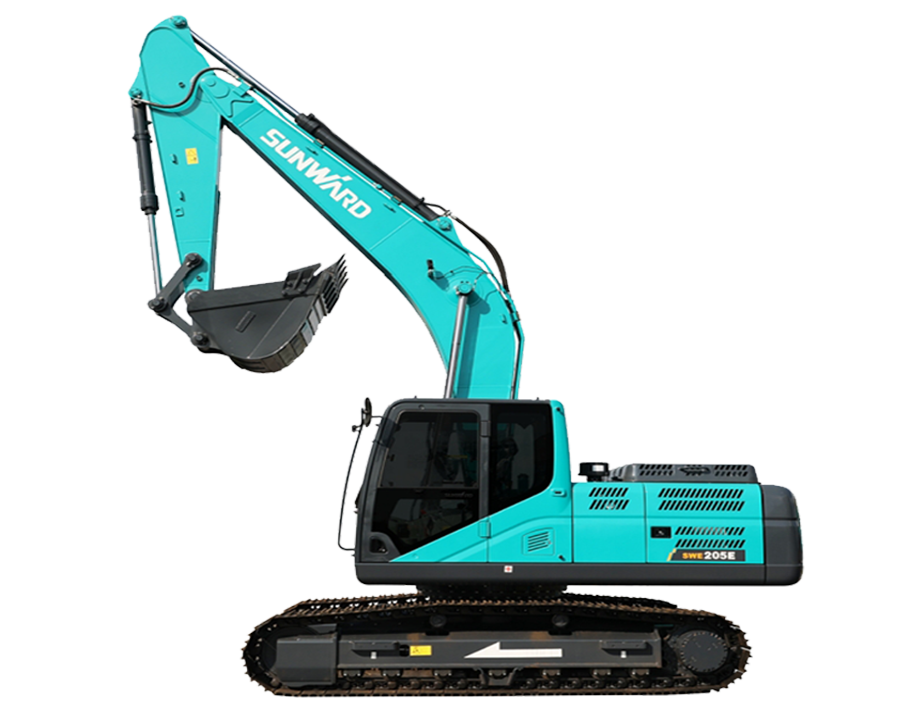

SWE205E
working weight: 20500kg
Standard bucket capicity: 1m3
Technical Parameters
-
Parameters and performance of the main machineworking weight
20500 kg
Standard bucket capicity1 m3
Bucket Digging Force155kN
Arm Digging Force115kN
Max. Traction193 kN
Max climbing angle70%
Ground Pressure45.4 kPa
Travel Speed(Max/Min)5.0/3.2km/h
Swing speed11 rpm
Fuel Tank345 L
Hydraulic Oil Tank280 L
-
EngineBrand
FAWDE
ModelBF6M
Power124/2200 kw /rpm
Max torque750/1350kw /rpm
Displacement5.7 L
-
Working RangeBoom Length
5700 mm
Arm Length2600 mm
Max. Digging Height9485 mm
Max. Dumping Height6760 mm
Max. Digging Depth6320 mm
Max. Depth Cut for 2440 mm Level Bottom6120 mm
Max. Vertical Digging Depth5780 mm
Max. Digging Reach9580 mm
Max. Digging Reach at Ground Level9400 mm
Min. Front Swing Radius3615 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
Outline dimensionTotal length
9565 mm
Total height3150 mm
Total width2800 mm
Counterweight Clearance1070 mm
Chasis ground clearance480 mm
Tail swing radius2870 mm
Track length on the ground3370 mm
Track Length4175 mm
Shoe distance2200 mm
Track width2800 mm
Shoe Width600 mm
Max height of total machine2945 mm
Swing width2710 mm
