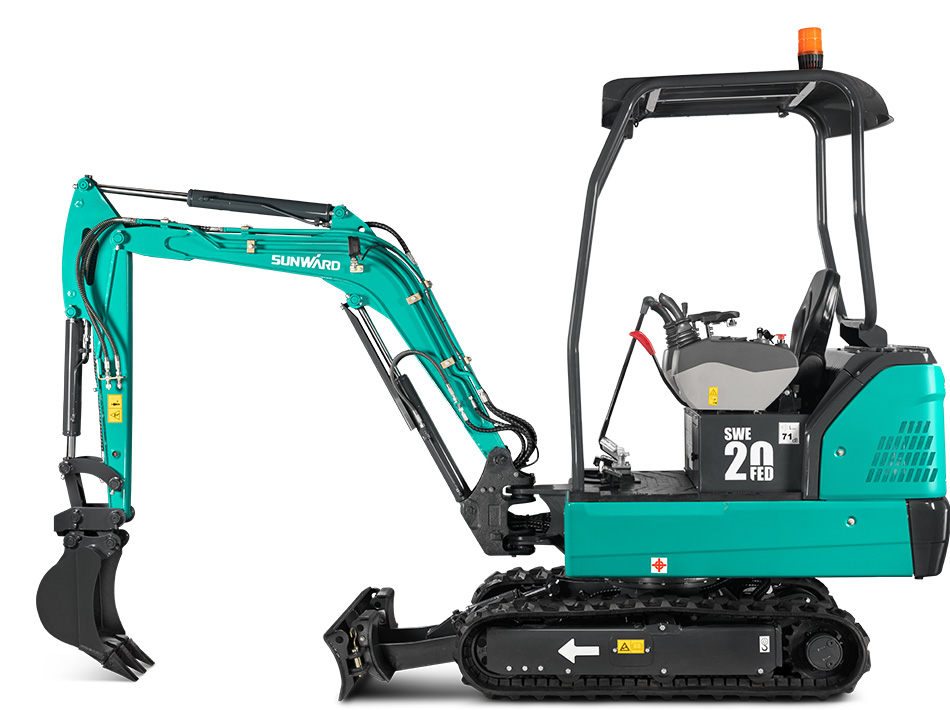

SWE20FED

Technical Parameters

• Parameters
  Dimension(L-W-H)

  3840x990x2361 mm

  With rubber track

  1.92 t

  With steel track

  t

  Standard bucket capacity

  0.035 m³

  Bucket digging ability

  22.7 KN

  Digging force of arm

  9.8 KN

  Max.traction

  18.5 KN

  Deflection angle(boom)

  47°(Right)65°Left)

  Travel speed(Max/Min)

  4.5/2.5 km/h

  Gradeability

  30 °

  Ground pressure

  30 kPa

  Slewing speed

  10 rpm

  Electricity

  20.6 Kw

  Pressure of main relief valve

  24.5 MPa

  Hydraulic oil tank capacity

  20 L

• Engine
  Battery Brand

  EIKTO

  LFP Battery

  YJT73.6V280AH

  Nominal voltage

  73.6 V

  Nominal capacity

  280 Ah

  Motor

  10/600 kW/rpm

• Engine
  Battery Brand

  EIKTO

  LFP Battery

  YJT73.6V280AH

  Nominal voltage

  73.6 V

  Nominal capacity

  280 Ah

  Motor

  10/600 kW/rpm

• Primary pump
  Type

  1 variable piston pump

  Flow rate

  50 L/min

• Working range
  Arm length

  1150 mm

  Max.digging height

  3770 mm

  Max.dumping height

  2720 mm

  Max.digging depth

  2380 mm

  Max.vertical digging depth

  1870 mm

  Max.digging radius

  4040 mm

  Max.digging reach at ground level

  3945 mm

  Max.lift height of the dozer blade

  240 mm

  Max.digging depth of the dozer blade

  240 mm

  Min. swing radius

  1580 mm

  Bulldozer blade length-width

  1360×267 mm

• Outline dimension
  Wheel tread

  1210 mm

  Total track length

  1540 mm

  Ground clearance of platform

  8240 mm

  Max. Dumping Height

  460 mm

  Platform tail slewing radius

  1120 mm

  Chassis width

  990/1360 mm

  Track width

  230 mm

  Chassis ground clearance

  160 mm

  Track height

  352 mm

  Total length

  3840 mm

  Cab roof height

  2361 mm

  Upper-structure width

  990 mm
