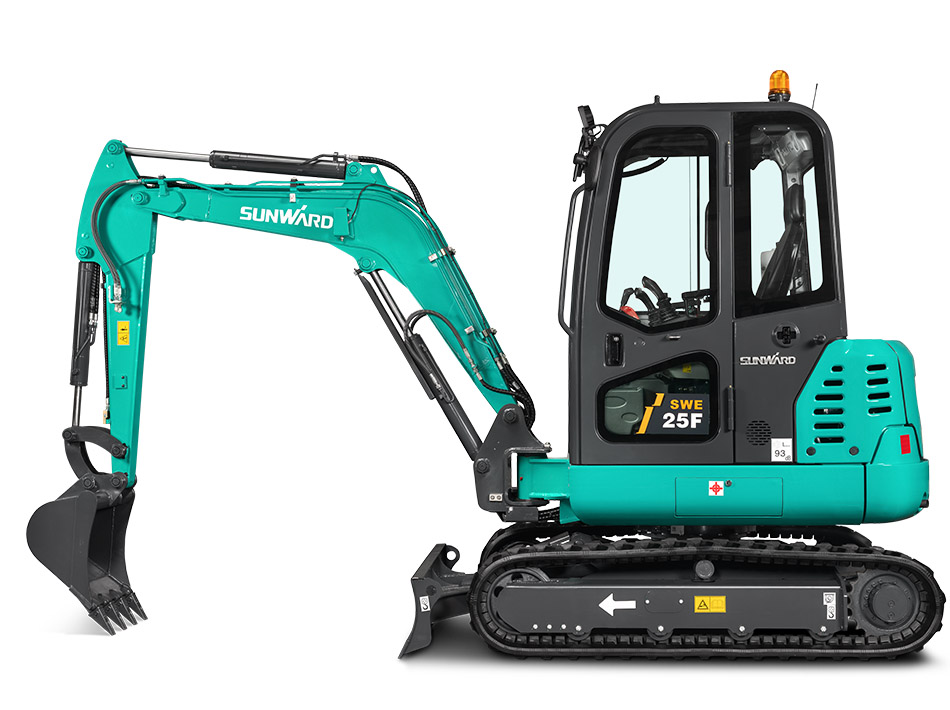

SWE25F

Technical Parameters

• Basic Parameter
  Operating Weight

  2640 kg

  Bucket Capacity

  0.08 m³

• Overall Dimension
  Overall Length

  4265 mm

  Overall Height

  2400 mm

  Overall Width

  1500 mm

  Counterweight Clearance

  550 mm

  Ground Clearance

  280 mm

  Tail Swing Radius

  1050 mm

  Length to Center of Rollers

  1560 mm

  Track Length

  1990 mm

  Track Gauge

  1200 mm

  Track Width

  1500 mm

  Track Shoe Width

  300 mm

  Max. Height of Cab

  2400 mm

  Uppercarriage Width

  1380 mm

• Working Range
  Boom Length

  2050 mm

  Arm Length

  1350 mm

  Max. Digging Height

  4445 mm

  Max. Dumping Height

  3110 mm

  Max. Digging Depth

  2705 mm

  Max. Depth Cut for 2440 mm Level Bottom

  2240 mm

  Max. Vertical Digging Depth

  1535 mm

  Max. Digging Reach

  4845 mm

  Max. Digging Reach at Ground Level

  4715 mm

  Min. Front Swing Radius

  2145 mm

  Max. Raising Height above Ground of Dozer Blade

  270 mm

  Max. Lowering Depth from Ground of Dozer Blade

  310 mm

• Performance
  Bucket Digging Force

  24 kN

  Arm Digging Force

  14 kN

  Max. Drawbar Pull

  21.6 kN

  Gradeability

  57 %

  Ground Pressure

  25 kPa

  Travel Speed(Max/Min)

  4.4/2.6 km/h

  Swing Speed

  9 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  42.5 L

  Hydraulic Tank Capacity

  30 L

• Engine
  Model

  3TNV80-PSU Stage Ⅴ/3TNV80F-SPSU Tier Ⅳ

  Rated Power

  14.6/2400 kw/rpm

  Max. Torque

  67.4/1800 N.m/rpm

  Displacement

  1.267 L

• Hydraulic System
  Main pump
  Type

  One variable plunger pump

  Max.Flow

  77 L/min

  System Pressure

  24.5 MPa

  Pilot pump

  Type

  –

  Max.Flow

  – L/min

  Pressure

  3.5 MPa

  Flow of Aux 1（break）

  50 L/min

  Flow of Aux 2

  30 L/min
