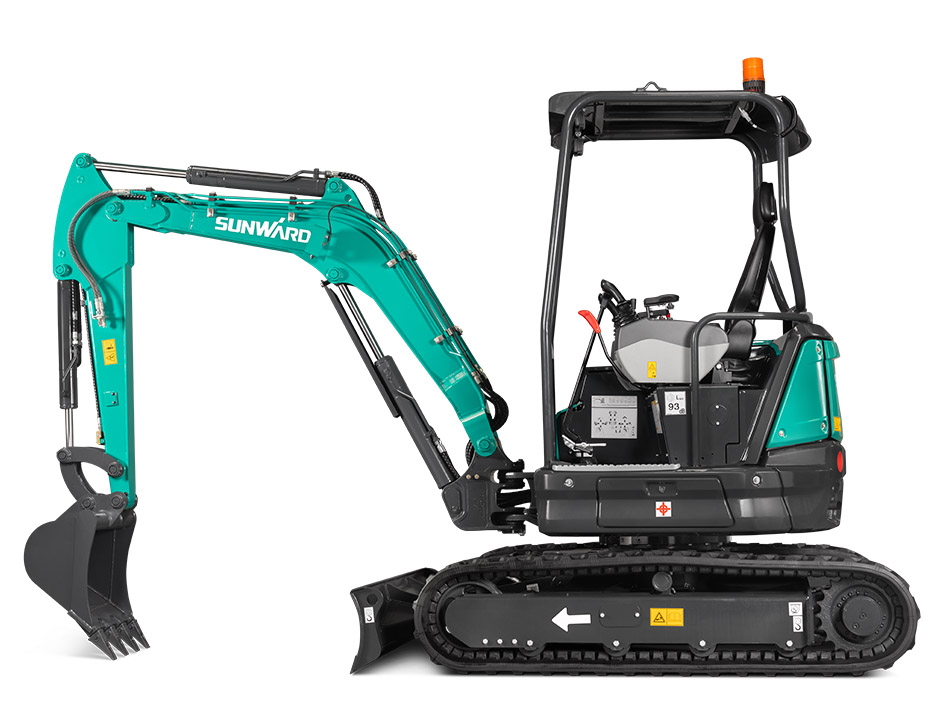

SWE25UF

Technical Parameters

• Basic Parameter
  Operating Weight

  2750 kg

  Bucket Capacity

  0.08 m3

• Overall Dimension
  Overall Length

  4150 mm

  Overall Height

  2510 mm

  Overall Width

  1500 mm

  Counterweight Clearance

  570 mm

  Ground Clearance

  325 mm

  Tail Swing Radius

  765 mm

  Length to Center of Rollers

  1560 mm

  Track Length

  1990 mm

  Track Gauge

  1200 mm

  Track Width

  1500 mm

  Track Shoe Width

  300 mm

  Max. Height of Cab

  2510 mm

  Uppercarriage Width

  1450 mm

• Working Range
  Boom Length

  2050 mm

  Arm Length

  1350 mm

  Max. Digging Height

  4235 mm

  Max. Dumping Height

  3040 mm

  Max. Digging Depth

  2800 mm

  Max. Depth Cut for 2440 mm Level Bottom

  2330 mm

  Max. Vertical Digging Depth

  2590 mm

  Max. Digging Reach

  4780 mm

  Max. Digging Reach at Ground Level

  4665 mm

  Min. Front Swing Radius

  2055 mm

  Max. Raising Height above Ground of Dozer Blade

  325 mm

  Max. Lowering Depth from Ground of Dozer Blade

  300 mm

• Performance
  Bucket Digging Force

  24 kN

  Arm Digging Force

  14 kN

  Max. Drawbar Pull

  21.5 kN

  Gradeability

  57 %

  Ground Pressure

  27 kPa

  Travel Speed(Max/Min)

  4.4/2.6 km/h

  Swing Speed

  9 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  26 L

  Hydraulic Tank Capacity

  24 L

• Engine
  Model

  D1105/Stage Ⅴ/Tier Ⅳ/Korea Ⅴ

  Rated Power

  15.4/2400 kw/rpm

  Max. Torque

  71.4/1600 N.m/rpm

  Displacement

  1.123 L

• Hydraulic System
  Main pump
  Type

  Two variable plunger pump，One gear pump

  Max.Flow

  2*28.8+19.2 L/min

  System Pressure

  2*23.5+19 MPa

  Pilot pump

  Type

  Quantitative gear pump

  Max.Flow

  6.5 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  48 L/min

  Flow of Aux 2

  48 MPa
