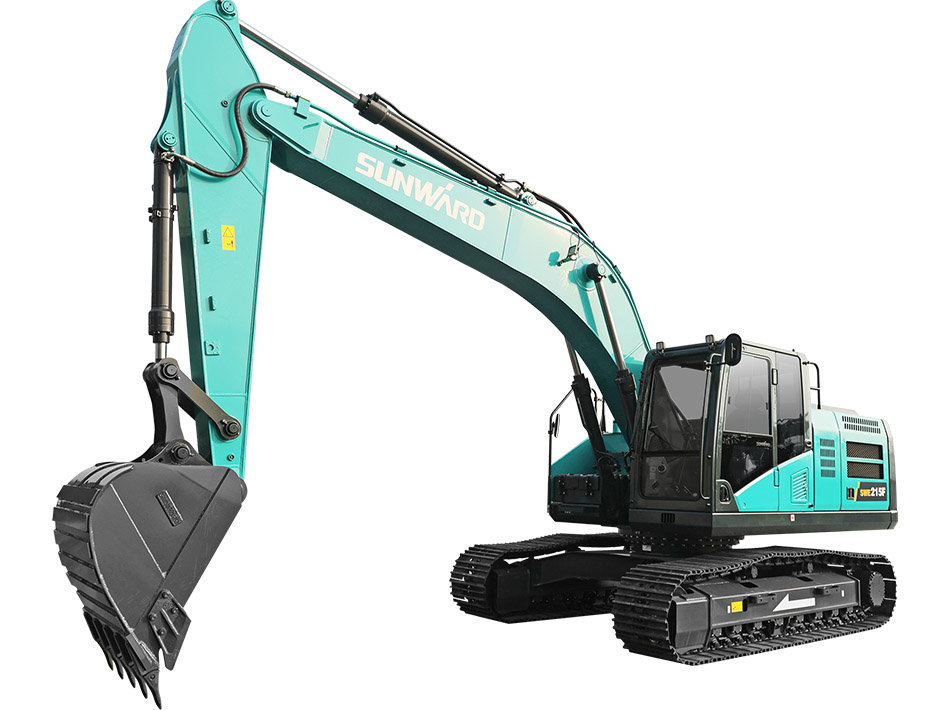

SWE215F

Technical Parameters

• Basic Parameter
  Operating Weight

  21800 kg

  Bucket Capacity

  1 m³

• Overall Dimension
  Overall Length

  9560 mm

  Overall Height

  3150 mm

  Overall Width

  2800 mm

  Counterweight Clearance

  1070 mm

  Ground Clearance

  480 mm

  Tail Swing Radius

  2880 mm

  Length to Center of Rollers

  3465 mm

  Track Length

  4260 mm

  Track Gauge

  2200 mm

  Track Width

  2800 mm

  Track Shoe Width

  600 mm

  Max. Height of Cab

  2990 mm

  Uppercarriage Width

  2710 mm

• Working Range
  Boom Length

  5700 mm

  Arm Length

  2920 mm

  Max. Digging Height

  9745 mm

  Max. Dumping Height

  6980 mm

  Max. Digging Depth

  6635 mm

  Max. Depth Cut for 2440 mm Level Bottom

  6460 mm

  Max. Vertical Digging Depth

  6050 mm

  Max. Digging Reach

  9915 mm

  Max. Digging Reach at Ground Level

  9745 mm

  Min. Front Swing Radius

  3530 mm

  Max. Raising Height above Ground of Dozer Blade

  – mm

  Max. Lowering Depth from Ground of Dozer Blade

  – mm

• Performance
  Bucket Digging Force

  155 kN

  Arm Digging Force

  110 kN

  Max. Drawbar Pull

  193 kN

  Gradeability

  70 %

  Ground Pressure

  47.06 kPa

  Travel Speed(Max/Min)

  5.2/3.3 km/h

  Swing Speed

  11.8 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  400L

  Hydraulic Tank Capacity

  300 L

• Engine
  Model

  B6.7

  Rated Power

  129/2200 kw/rpm

  Max. Torque

  881/1300 N.m/rpm

  Displacement

  6.7 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  2*286 L/min

  System Pressure

  31.4/34.3 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  22 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  234 L/min

  Flow of Aux 2

  36 L/min
