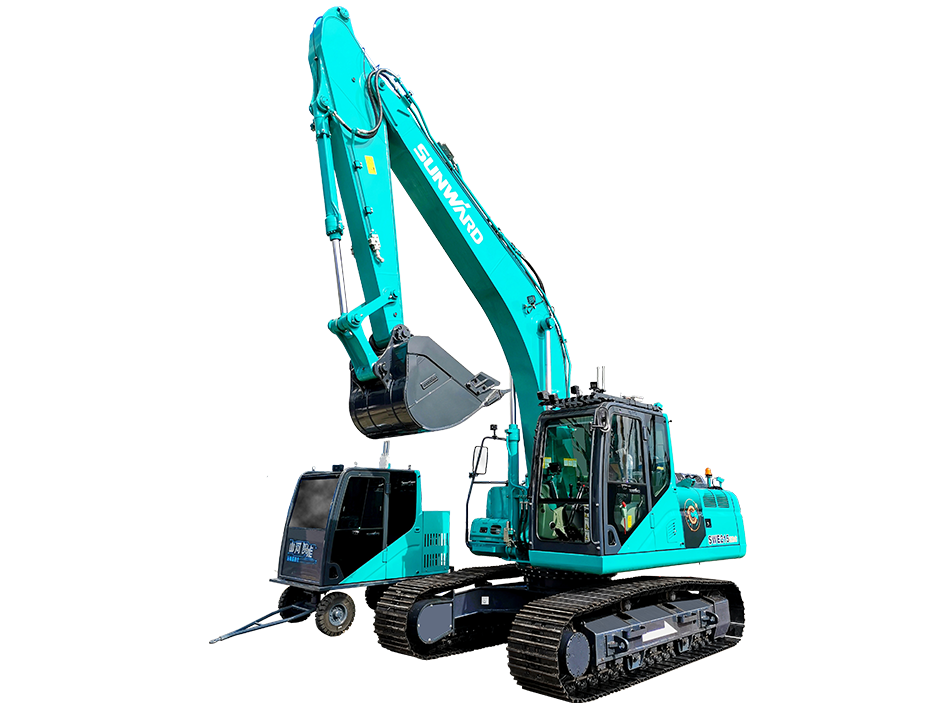

SWE215FE

Technical Parameters

• Parameters and performance of the main machine
  Weight of whole machine

  21500 kg

  Standard bucket capicity

  1.0~1.2 m³

• Motor
  Motor type

  Permanent Magnet Synchronous

  Rated power

  132/1800 kW

  Rated torque

  700 Nm

• Battery
  Type

  Lithium iron phosphate

  Capacity

  315 kW

  Voltage

  608.58 V

  Indicative time

  4-6 h

• Hydraulic system
  Main pump type

  Plunger variable pump

  Max. flow

  2*234 L/min

  System pressure

  31.4/34.3 MPa

  Pilot pump type

  gear pump

  Maximum flow of pilot pump

  18 L/min

  Pressure of pilot pump

  3.9 MPa

• Performance
  Swing speed

  12 rpm

  Travelspeed

  5.6/3.5km/h

  Climbing capacity

  70 °

  Ground pressure

  47.6 kPa

• Oil tank capacity
  Hydraulic oil

  300 L

• Working Range
  Boom length

  5700 mm

  Arm length

  2600 mm

  Max. Digging Height

  5700 mm

  Max. Dumping Height

  6790 mm

  Max. Digging Depth

  6405 mm

  Digging depth (2.44m:horizontal)

  6220 mm

  Max. Vertical Digging Depth

  6020 mm

  Max. Digging Reach

  9665 mm

  Max.ground digging reach

  9490 mm

  Min. Front Swing Radius

  3615 mm

  Max.lifting height of dozer blade

   — mm

  Max.digging depth of dozer blade

  — mm

  Digging force of bucket

  155 kN

  Digging force of arm

  110 kN

• Outline dimension
  Total length

  9860 mm

  Total height

  3345 mm

  Total width

  2800 mm

  Counterweight height above the ground

  1070 mm

  Min. height above the ground

  480 mm

  Tail swing radius

  3130 mm

  Track length on the ground

  3370 mm

  Track Length

  4175 mm

  Shoe distance

  2200 mm

  Track width

  2800 mm

  Track shoe width

  600 mm

  Max.height of the machine

  3000 mm

  Turntable width

  2710 mm
