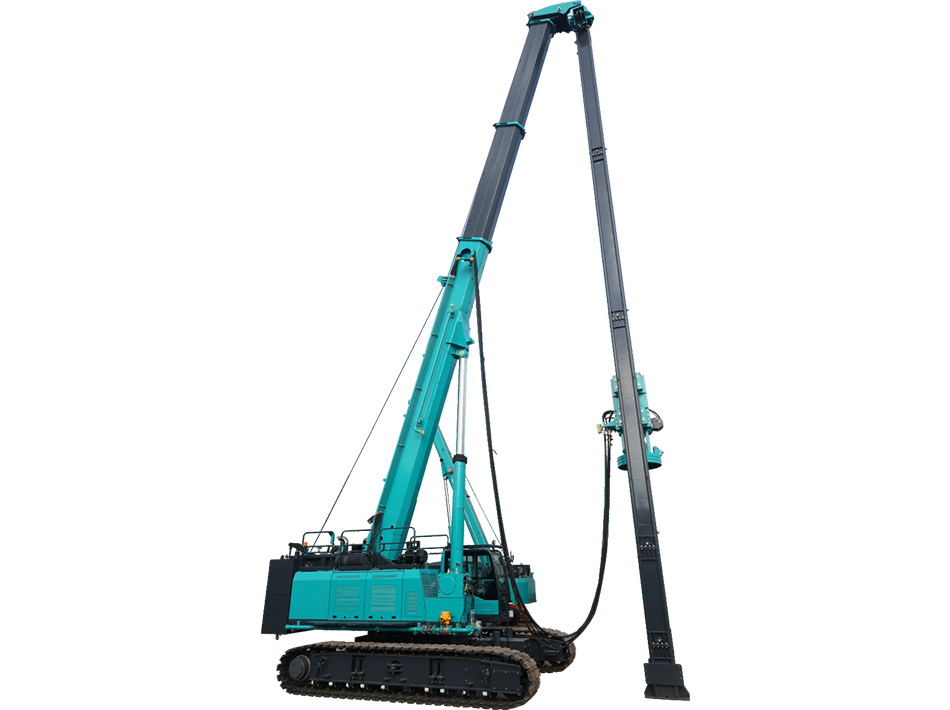

SWTC950E-SWTD80
Overall weight: 87t
Max.lifting capacity: 95t
Technical Parameters
-
SWTC950EEngine:Model
L9CSIV322C
Rated power240/2100KW/rpm
Technical Parameters:Overall weight87t
Max.lifting capacity95t
Basic boom length11.2m
Fully extended boom length34m
Max. load moment of fully basic boom3405kN.m
Max. load moment of fully extended boom1787kN.m
Max. lifting height of basic boom10m
Max. lifting height of fully extended boom33m
Outline dimension(L*W*H)14111×3400×3540mm
-
SWTD80Power head:Torque
98kN.m
Speed0~30rpm
Pillar:Lengthφ89
Rail center diatance400mm
Max.allowable lifting force500mm
Technical Parameters:Operating device weight13.3
Power head weight4KN
Wire rope diameterφ22
Power head drive methodHydraulic
Upper counterweight*2970×800×1050mm/t
Lower counterweight*23790×980×920mm/t
