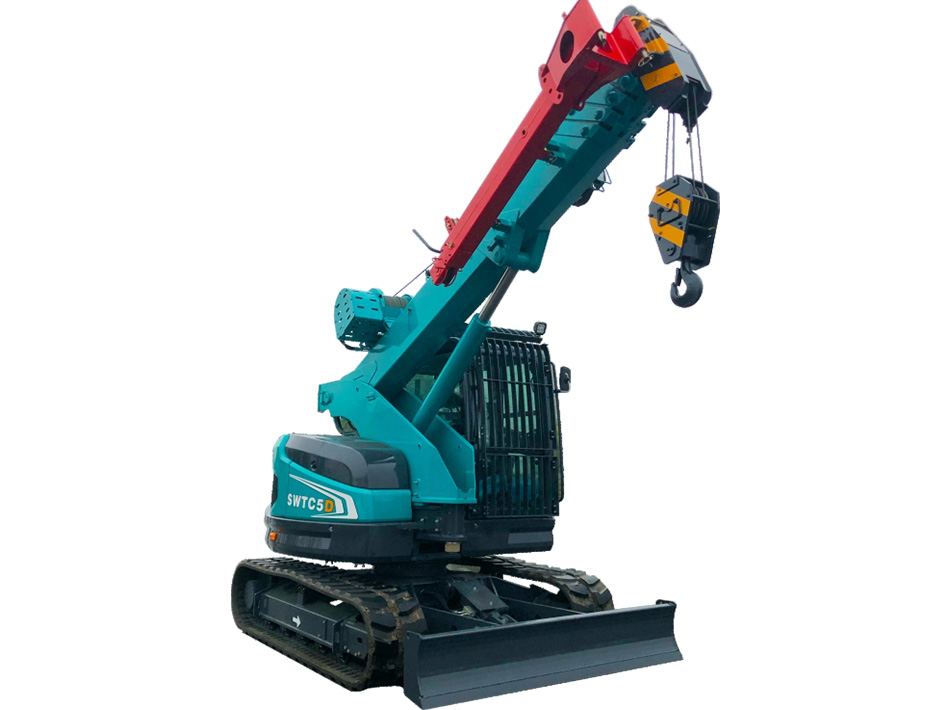

SWTC5D
Dimension (LxWxH): 5330x2260x2835mm
Center distance between driving pulley and the driven pulley: 2269mm
Technical Parameters
-
DimensionsDimension (LxWxH)
5330x2260x2835mm
Center distance between driving pulley and the driven pulley2269mm
Length of track2890mm
Height from platform to ground780mm
Slewing motor of platform tail1740mm
Chassis width2250mm
Width of track450mm
Minimum ground clearance400mm
Height of track675mm
Height from control room top to ground2835mm
-
Operating speed parameterMax rated lfting capacity
5t
Maximum load moment of basic boom10.5t.m
Maximum load moment of fully extended boom6t.m
Length of basic boom4.63m
Length of full extensional main boom15.63m
Maximum lifting height of basic boom5.3m
Maximum lifting height of the longest main boom16.5m
-
Main performance parametersBoom luffing time (up/down)
11/9S
Boom telescopi time (extension/retraction)17/20S
Swing speed4.5rpm
Speed of hoisting single rope110m/min
Traveling speed4.6km/h
Micro-traveling speed2.5km/h
-
ParametersMachine weight
10.91t
Max gradeability36.4%
Ground pressure0.05Mpa
Capacity of fuel tank125L
-
EngineModels
4TNV98C-SSU
TypeWater Cooling/Turbocharging
Displacement3.319L
Power/rotating speed46.2KW/2200rpm
