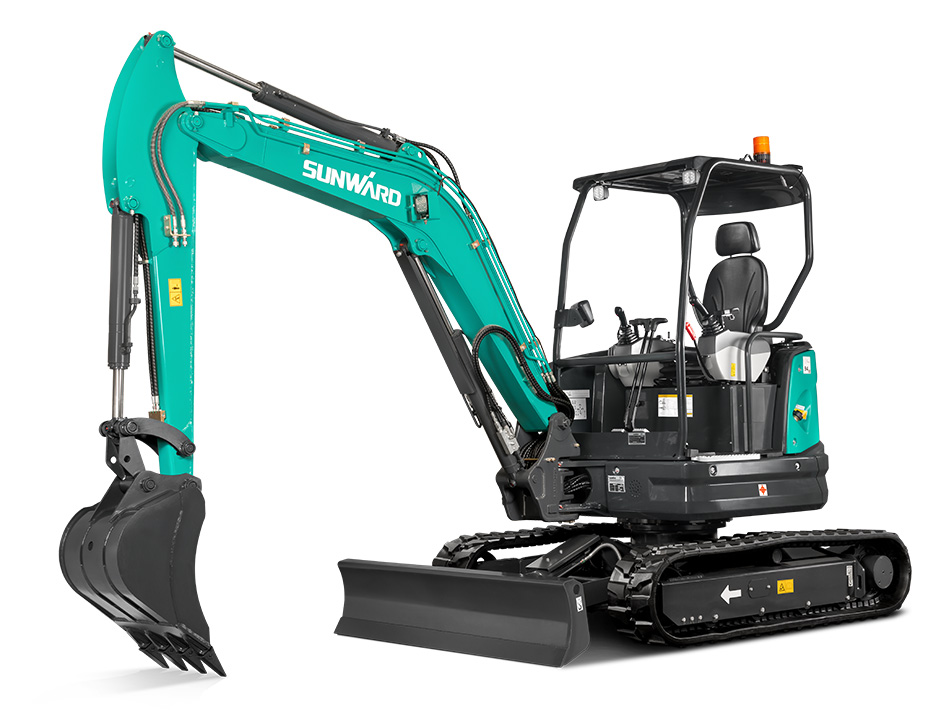

SWE35UF Canopy
Operating Weight: 3850kg
Bucket Capacity: 0.11m3
Technical Parameters
-
Basic ParameterOperating Weight
3850 kg
Bucket Capacity0.11 m3
-
Overall DimensionOverall Length
4890 mm
Overall Height2560 mm
Overall Width1700 mm
Counterweight Clearance590 mm
Ground Clearance270 mm
Tail Swing Radius850 mm
Length to Center of Rollers1670 mm
Track Length2160 mm
Track Gauge1400 mm
Track Width1700 mm
Track Shoe Width300 mm
Max. Height of Cab2560 mm
Uppercarriage Width1505 mm
-
Working RangeBoom Length
2550 mm
Arm Length1550 mm
Max. Digging Height5045 mm
Max. Dumping Height3520 mm
Max. Digging Depth3320 mm
Max. Depth Cut for 2440 mm Level Bottom2615 mm
Max. Vertical Digging Depth2860 mm
Max. Digging Reach5575 mm
Max. Digging Reach at Ground Level5450 mm
Min. Front Swing Radius2325 mm
Max. Raising Height above Ground of Dozer Blade340 mm
Max. Lowering Depth from Ground of Dozer Blade375 mm
-
PerformanceBucket Digging Force
31.8 kN
Arm Digging Force19.8 / 18 kN
Max. Drawbar Pull33.2 kg
Gradeability57 %
Ground Pressure34 kPa
Travel Speed(Max/Min)4.0/2.3 km/h
Swing Speed9.5 rpm
-
Oil Tank CapacityFuel Tank Capacity
40 L
Hydraulic Tank Capacity41 L
-
EngineModel
D1703/Stage Ⅴ/Tier Ⅳ/Korea Ⅴ
Rated Power18.2/2200 kw/rpm
Max. Torque96/1500 N.m/rpm
Displacement1.647 L
-
Hydraulic SystemMain pumpType
One variable plunger pump
Max.Flow1*88 L/min
System Pressure26 MPa
Pilot pumpType–
Max.Flow– L/min
Pressure3.5 MPa
Flow of Aux 1（break）50 L/min
Flow of Aux 230 MPa
