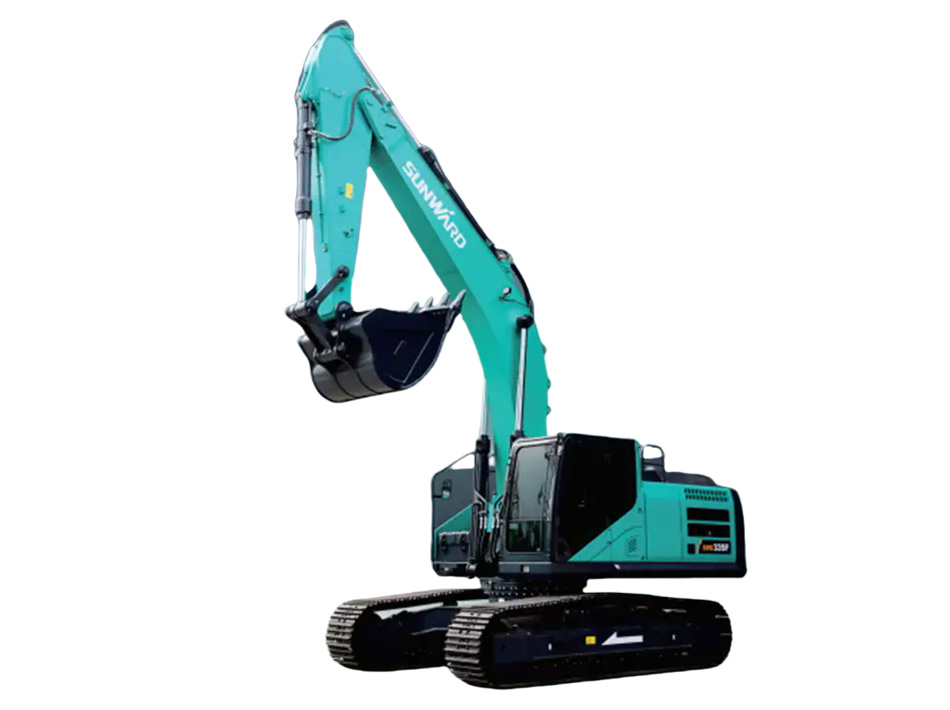

SWE375F
Operating Weight: 38500
Bucket Capacity: 1.8m3
Technical Parameters
-
Basic ParameterOperating Weight
38500 kg
Bucket Capacity1.8 m3
-
Overall DimensionOperating weight
11370 mm
Overall Height3730 mm
Overall Width3390 mm
Counterweight Clearance1270 mm
Ground Clearance537 mm
Tail Swing Radius3620 mm
Length to Center of Rollers4025 mm
Track Length4940 mm
Track Gauge2590 mm
Track Width3390 mm
Track Shoe Width800 mm
Max. Height of Cab3275 mm
Uppercarriage Width3120 mm
-
Working RangeBoom Length
6500 mm
Arm Length3260 mm
Max. Digging Height10675 mm
Max. Dumping Height7575 mm
Max. Digging Depth7420 mm
Max. Depth Cut for 2440 mm Level Bottom7255 mm
Max. Vertical Digging Depth6335 mm
Max. Digging Reach11285 mm
Max. Digging Reach at Ground Level11077 mm
Min. Front Swing Radius4410 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
PerformanceBucket Digging Force
253 kN
Arm Digging Force180 kN
Max. Drawbar Pull307 kN
Gradeability70 %
Ground Pressure58.5 kPa
Travel Speed(Max/Min)6.2/3.6 km/h
Swing Speed9.1 rpm
-
Oil Tank CapacityFuel Tank Capacity
700 L
Hydraulic Tank Capacity475 L
-
EngineModel
6LTAA8.9 kg
Rated Power241/2000 kw/rpm
Max. Torque1400/1400 N.m/rpm
Displacement8.9 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2×324 L/min
System Pressure34.3 MPa
Pilot pumpTypeGear pump
Max.Flow27 L/min
Pressure3.9 MPa
Flow of Aux 1（break）300 L/min
Flow of Aux 2– L/min
