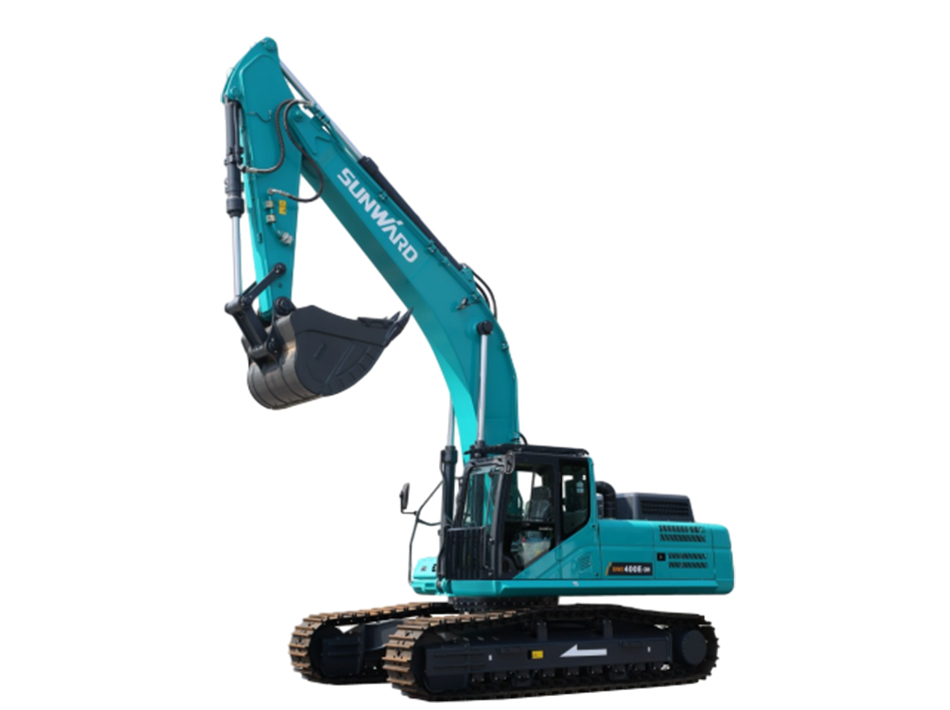

SWE400E-3H
Operating Weight: 39200kg
Bucket Capacity: 2m3
Technical Parameters
-
Basic ParameterOperating Weight
39200 kg
Bucket Capacity2 m3
-
Overall DimensionOverall Height
11235 mm
Overall Width3600 mm
Counterweight Clearance3340 mm
Ground Clearance1200 mm
Ground Clearance537 mm
Tail Swing Radius3545 mm
Length to Center of Rollers4245 mm
Track Length5181 mm
Track Gauge2740 mm
Track Width3340 mm
Track Shoe Width600 mm
Max. Height of Cab3600 mm
Uppercarriage Width3110 mm
-
Working RangeBoom Length
6500 mm
Arm Length2670 mm
Max. Digging Height10230 mm
Max. Dumping Height7180 mm
Max. Digging Depth6855 mm
Max. Depth Cut for 2440 mm Level Bottom6670 mm
Max. Vertical Digging Depth5460 mm
Max. Digging Reach10715 mm
Max. Digging Reach at Ground Level10500 mm
Min. Front Swing Radius4480 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
PerformanceBucket Digging Force
253 kN
Arm Digging Force217 kN
Max. Drawbar Pull348 kN
Gradeability70 %
Ground Pressure68.8 kPa
Travel Speed(Max/Min)6.2/3.6 km/h
Swing Speed10.2 rpm
-
Oil Tank CapacityFuel Tank Capacity
650 L
Hydraulic Tank Capacity320 L
-
EngineModel
QSL9
Rated Power214/2100 kw/rpm
Max. Torque1505/1400 N.m/rpm
Displacement8.9 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2×324 L/min
System Pressure34.3 MPa
Pilot pumpTypeGear pump
Max.Flow27 L/min
Pressure3.9 MPa
Flow of Aux 1（break）300 L/min
Flow of Aux 2– L/min
