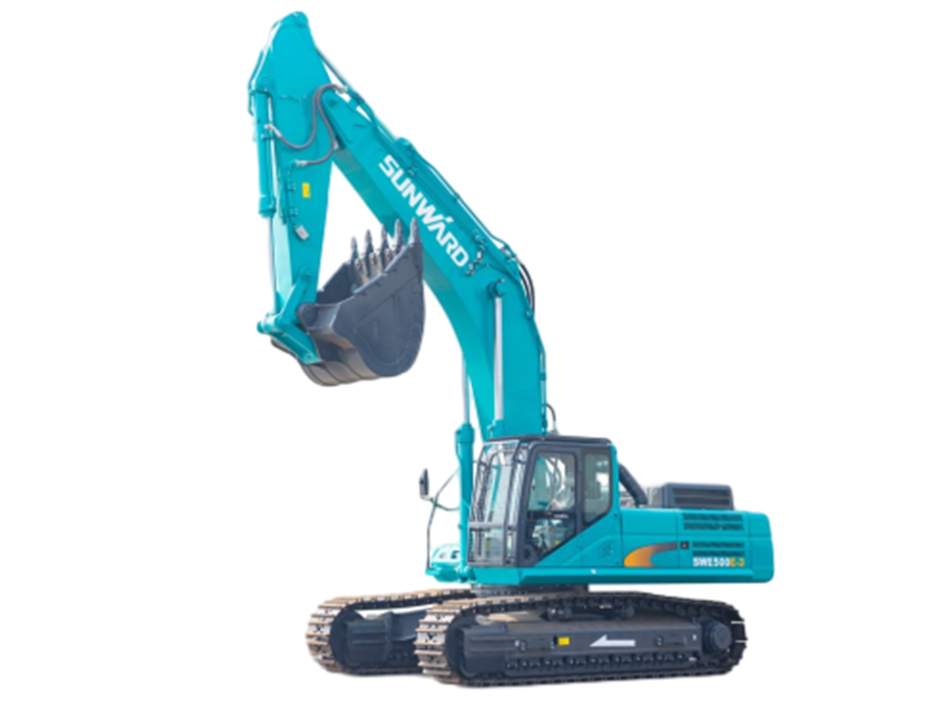

SWE500E-3H
Operating Weight: 49000kg
Bucket Capacity: 2.6m3
Technical Parameters
-
Basic ParameterOperating Weight
49000 kg
Bucket Capacity2.6 m3
-
Overall DimensionOperating weight
11450 mm
Overall Height4000 mm
Overall Width3478 mm
Counterweight Clearance1275 mm
Ground Clearance550 mm
Tail Swing Radius3670 mm
Length to Center of Rollers4410 mm
Track Length5480 mm
Track Gauge2740 mm
Track Width3340 mm
Track Shoe Width600 mm
Max. Height of Cab3140 mm
Uppercarriage Width3240 mm
-
Working RangeBoom Length
6400 mm
Arm Length2900 mm
Max. Digging Height10745 mm
Max. Dumping Height7300 mm
Max. Digging Depth6850 mm
Max. Depth Cut for 2440 mm Level Bottom6695 mm
Max. Vertical Digging Depth5680 mm
Max. Digging Reach11115 mm
Max. Digging Reach at Ground Level10890 mm
Min. Front Swing Radius4540 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
PerformanceBucket Digging Force
297 kN
Arm Digging Force261 kN
Max. Drawbar Pull423 kN
Gradeability70 %
Ground Pressure84.1 kPa
Travel Speed(Max/Min)4.8/3.0 km/h
Swing Speed8.6 rpm
-
Oil Tank CapacityFuel Tank Capacity
690 L
Hydraulic Tank Capacity375 L
-
EngineModel
QSM11
Rated Power280/2000 kw/rpm
Max. Torque1898/1300 N.m/rpm
Displacement11 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2×360 L/min
System Pressure34.3 MPa
Pilot pumpTypeGear pump
Max.Flow30 L/min
Pressure3.9 MPa
Flow of Aux 1（break）300 L/min
Flow of Aux 2– L/min
