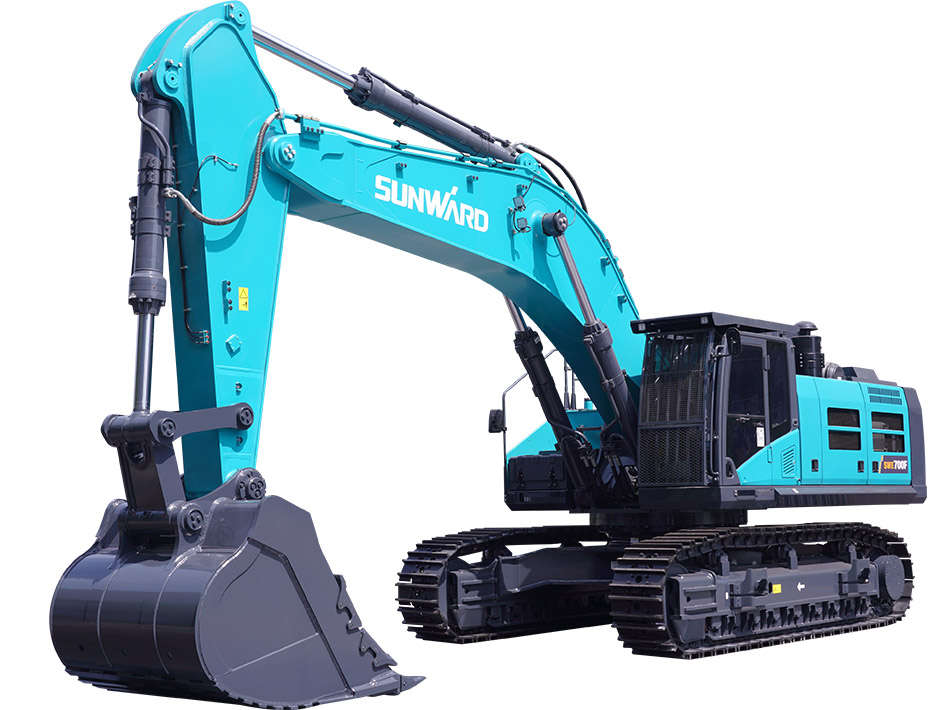

SWE700F

Technical Parameters

• Basic Parameter
  Operating Weight

  66700 kg

  Bucket Capacity

  4.5 m³

• Overall Dimension
  Overall Length

  12165 mm

  Overall Height

  4580 mm

  Overall Width

  3740 mm

  Counterweight Clearance

  1450 mm

  Ground Clearance

  600 mm

  Tail Swing Radius

  4095 mm

  Length to Center of Rollers

  4600 mm

  Track Length

  5725 mm

  Track Gauge

  2900 mm

  Track Width

  3500 mm

  Track Shoe Width

  600 mm

  Max. Height of Cab

  3675 mm

  Uppercarriage Width

  3415 mm

• Working Range
  Boom Length

  6600 mm

  Arm Length

  2900 mm

  Max. Digging Height

  11290 mm

  Max. Dumping Height

  7190 mm

  Max. Digging Depth

  7030 mm

  Max. Depth Cut for 2440 mm Level Bottom

  6885 mm

  Max. Vertical Digging Depth

  4770 mm

  Max. Digging Reach

  11725 mm

  Max. Digging Reach at Ground Level

  11465 mm

  Min. Front Swing Radius

  5040 mm

  Max. Raising Height above Ground of Dozer Blade

  – mm

  Max. Lowering Depth from Ground of Dozer Blade

  – mm

• Performance
  Bucket Digging Force

  364 kN

  Arm Digging Force

  290 kN

  Tipping load

  2200 kg

  Max. Drawbar Pull

  564 kN

  Gradeability

  70 %

  Ground Pressure

  100.4 kPa

  Travel Speed(Max/Min)

  4.7/3.2 km/h

  Swing Speed

  8.1 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  850 L

  Hydraulic Tank Capacity

  590 L

• Engine
  Model

  QSM15

  Rated Power

  563/2100 kw/rpm

  Max. Torque

  3000/1400 N.m/rpm

  Displacement

  14.5 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  2×448 L/min

  System Pressure

  34.3 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  24 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  350 L/min

  Flow of Aux 2

  -L/min
