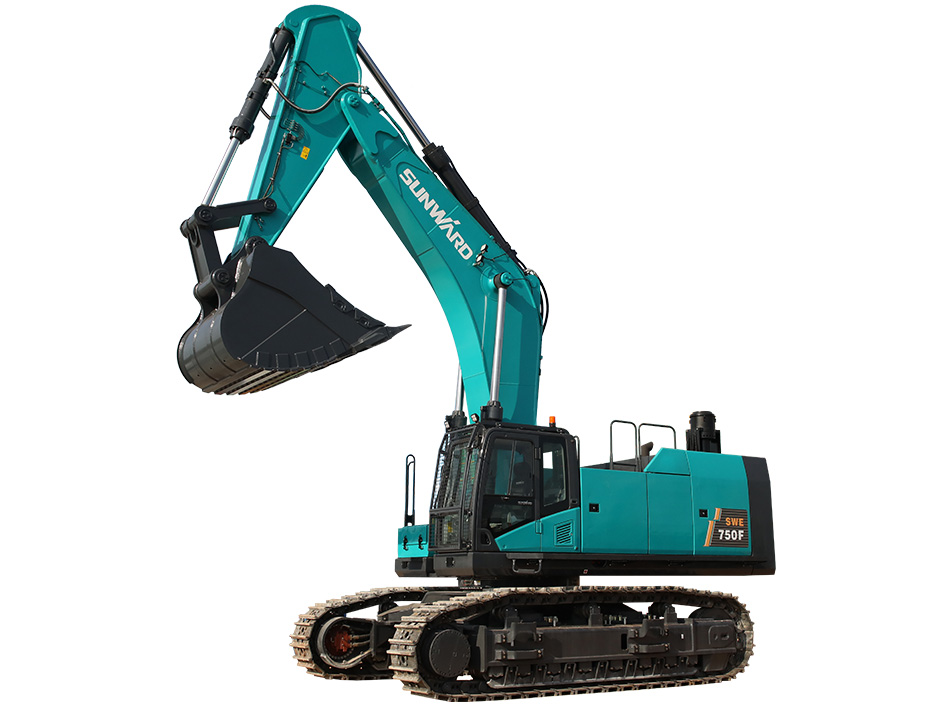

SWE750F
Operating Weight: 79000kg
Bucket Capacity: 5m3
Technical Parameters
-
Basic ParameterOperating Weight
79000 kg
Bucket Capacity5 m3
-
Overall DimensionOverall Length
12569 mm
Overall Height4973 mm
Overall Width4310/3500 mm
Counterweight Clearance1556 mm
Ground Clearance886 mm
Tail Swing Radius4220 mm
Length to Center of Rollers4655 mm
Track Length5880 mm
Track Gauge3410/2750 mm
Track Width4060 mm
Track Shoe Width650 mm
Max. Height of Cab4215 mm
Uppercarriage Width3480 mm
-
Working RangeBoom Length
6.6 mm
Arm Length2.9 mm
Max. Digging Height11634 mm
Max. Dumping Height7709 mm
Max. Digging Depth6694 mm
Max. Depth Cut for 2440 mm Level Bottom6550 mm
Max. Vertical Digging Depth3860 mm
Max. Digging Reach11654 mm
Max. Digging Reach at Ground Level11345 mm
Min. Front Swing Radius4921 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
PerformanceBucket Digging Force
401 kN
Arm Digging Force358 kN
Max. Drawbar Pull580 kN
Gradeability70 %
Ground Pressure110 kPa
Travel Speed(Max/Min)4.5/2.9 km/h
Swing Speed7.3 rpm
-
Oil Tank CapacityFuel Tank Capacity
1000 L
Hydraulic Tank Capacity900 L
-
EngineModel
TAD1643VE-B
Rated Power565/1900 kw/rpm
Max. Torque3290/1400 N.m/rpm
Displacement16.12 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2×504 L/min
System Pressure34.3 MPa
Pilot pumpTypeGear pump
Max.Flow27 L/min
Pressure3.9 MPa
Flow of Aux 1（break）380 L/min
Flow of Aux 2-L/min
