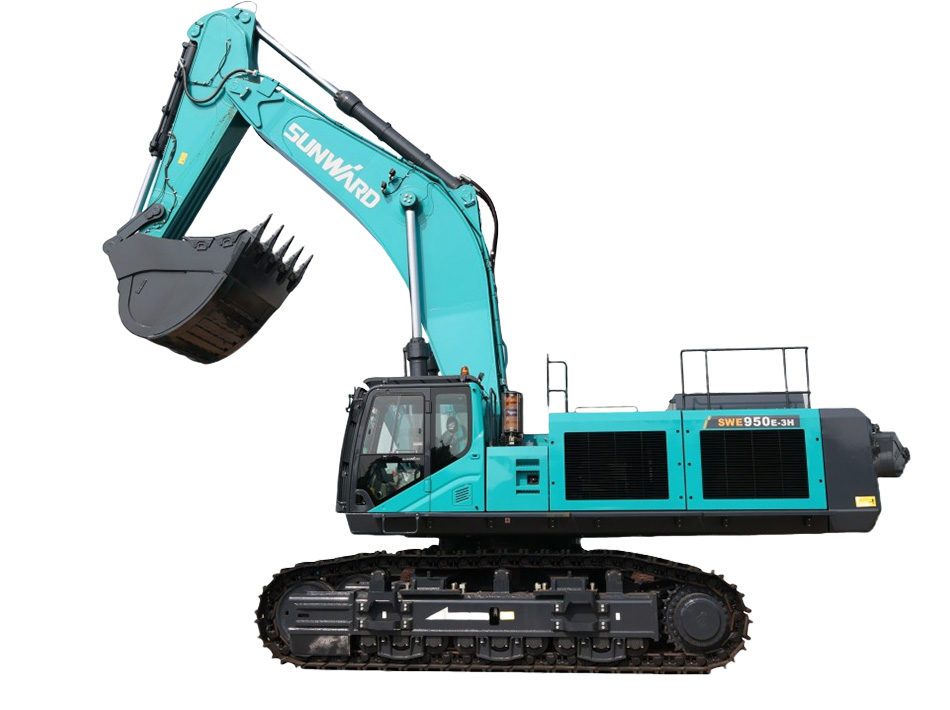

SWE950E-3H

Technical Parameters

• Basic Parameter
  Operating Weight

  93800 kg

  Bucket Capacity

  4.5～6.5 m³

• Overall Dimension
  Overall Length

  13885 mm

  Overall Height

  5110 mm

  Overall Width

  4425 mm

  Counterweight Clearance

  1645 mm

  Ground Clearance

  925 mm

  Tail Swing Radius

  4850 mm

  Length to Center of Rollers

  4945 mm

  Track Length

  6205 mm

  Track Gauge

  2750/3380 mm

  Track Width

  3400/4030 mm

  Track Shoe Width

  650 mm

  Max. Height of Cab

  4200 mm

  Uppercarriage Width

  4425 mm

• Working Range
  Boom Length

  7100 mm

  Arm Length

  2950 mm

  Max. Digging Height

  12160 mm

  Max. Dumping Height

  8030 mm

  Max. Digging Depth

  7240 mm

  Max. Depth Cut for 2440 mm Level Bottom

  7120 mm

  Max. Vertical Digging Depth

  6485 mm

  Max. Digging Reach

  12490 mm

  Max. Digging Reach at Ground Level

  12145 mm

  Min. Front Swing Radius

  5625 mm

  Max. Raising Height above Ground of Dozer Blade

  – mm

  Max. Lowering Depth from Ground of Dozer Blade

  – mm

• Performance
  Bucket Digging Force

  495 kN

  Arm Digging Force

  373 kN

  Max. Drawbar Pull

  630 kN

  Gradeability

  70 %

  Ground Pressure

  129 kPa

  Travel Speed(Max/Min)

  4/2.5 km/h

  Swing Speed

  6.5 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  1300 L

  Hydraulic Tank Capacity

  1100 L

• Engine
  Model

  TAD1643VE-B

  Rated Power

  565/1900 kw/rpm

  Max. Torque

  3240/1300 N.m/rpm

  Displacement

  16.12 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  2×504 L/min

  System Pressure

  34.3 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  27 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  450 L/min

  Flow of Aux 2

  -L/min
